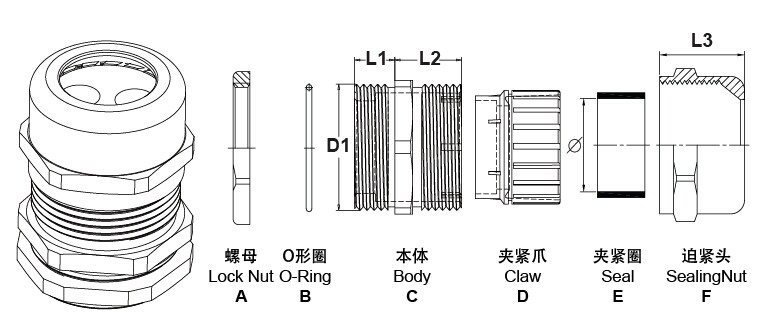

| 公制螺紋 M? | 德制螺紋 PG | 美制螺紋 NPT | 英制螺紋 G | 孔數×孔徑 Cable Range | 適用電纜 Cable Range | 螺紋長度 Thread Length L1 | 配套螺母 上限板厚 +Nut Max platethick | 接合長度 Joint Length L2+L3 | 板手 Spanner SW A/F |
| A-M12×1.5-H2-2 | A-PG7-H2-2 | A-NPT1/4-H2-2 | A-G1/4-H2-2 | 2×2 | 0.5-2 | 6 | ≤2.5 | 19 | 14/14 |
| A-M12×1.5-H3-2 | A-PG7-H3-2 | A-NPT1/4-H3-2 | A-G1/4-H3-2 | 3×2 | 0.5-2 | 6 | ≤2.5 | 19 | 14/14 |
| A-M12×1.5-H4-1 | A-PG7-H4-1 | A-NPT1/4-H4-1 | A-G1/4-H4-1 | 4×1 | 0.3-1 | 6 | ≤2.5 | 19 | 14/14 |
| A-M16×1.5-H2-3 | A-PG9-H2-3 | A-NPT3/8-H2-3 | A-G3/8-H2-3 | 2×3 | 1-3 | 7 | ≤3.5 | 20 | 18/18 |
| A-M16×1.5-H3-3 | A-PG9-H3-3 | A-NPT3/8-H3-3 | A-G3/8-H3-3 | 3×3 | 1-3 | 7 | ≤3.5 | 20 | 18/18 |
| A-M16×1.5-H4-2 | A-PG9-H4-2 | A-NPT3/8-H4-2 | A-G3/8-H4-2 | 4×2 | 1-2 | 7 | ≤3.5 | 20 | 18/18 |
| A-M16×1.5-H5-1 | A-PG9-H5-1 | A-NPT3/8-H5-1 | A-G3/8-H5-1 | 5×1 | 0.3-1 | 7 | ≤3.5 | 20 | 18/18 |
| A-M20×1.5-H2-4 | A-PG13.5-H2-4 | A-NPT1/2-H2-4 | A-G1/2-H2-4 | 2×4 | 2-4 | 8 | ≤4.5 | 23 | 22/22 |
| A-M20×1.5-H3-4 | A-PG13.5-H3-4 | A-NPT1/2-H3-4 | A-G1/2-H3-4 | 3×4 | 2-4 | 8 | ≤4.5 | 23 | 22/22 |
| A-M20×1.5-H4-3 | A-PG13.5-H4-3 | A-NPT1/2-H4-3 | A-G1/2-H4-3 | 4×3 | 1-3 | 8 | ≤4.5 | 23 | 22/22 |
| A-M20×1.5-H5-2 | A-PG13.5-H5-2 | A-NPT1/2-H5-2 | A-G1/2-H5-2 | 5×2 | 0.5-2 | 8 | ≤4.5 | 23 | 22/22 |
| A-M20×1.5-H6-1 | A-PG13.5-H6-1 | A-NPT1/2-H6-1 | A-G1/2-H6-1 | 6×1 | 0.3-1 | 8 | ≤4.5 | 23 | 22/22 |
| A-M25×1.5-H2-5 | A-PG16-H2-5 | A-NPT3/4-H2-5 | A-G3/4-H2-5 | 2×5 | 3-5 | 9 | ≤4.5 | 23 | 28/24 |
| A-M25×1.5-H3-5 | A-PG16-H3-5 | A-NPT3/4-H3-5 | A-G3/4-H3-5 | 3×5 | 3-5 | 9 | ≤4.5 | 23 | 28-24/24 |
| A-M25×1.5-H4-4 | A-PG16-H4-4 | A-NPT3/4-H4-4 | A-G3/4-H4-4 | 4×4 | 2-4 | 9 | ≤4.5 | 23 | 28/24 |
| A-M25×1.5-H5-3 | A-PG16-H5-3 | A-NPT3/4-H5-3 | A-G3/4-H5-3 | 5×3 | 1-3 | 9 | ≤4.5 | 23 | 28/24 |
| A-M25×1.5-H6-2 | A-PG16-H6-2 | A-NPT3/4-H6-2 | A-G3/4-H6-2 | 6×2 | 0.5-2 | 9 | ≤4.5 | 23 | 28/24 |
| A-M32×1.5-H2-7 | A-PG21-H2-7 | A-NPT3/4-H2-7 | A-G3/4-H2-7 | 2×7 | 4-7 | 9 | ≤4.5 | 23 | 34-30/30 |
| A-M32×1.5-H3-6 | A-PG21-H3-6 | A-NPT3/4-H3-6 | A-G3/4-H3-6 | 3×6 | 3-6 | 9 | ≤4.5 | 23 | 34-30/30 |
| A-M32×1.5-H4-6 | A-PG21-H4-6 | A-NPT3/4-H4-6 | A-G3/4-H4-6 | 4×6 | 3-6 | 9 | ≤4.5 | 23 | 34-30/30 |
| A-M32×1.5-H5-4 | A-PG21-H5-4 | A-NPT3/4-H5-4 | A-G3/4-H5-4 | 5×4 | 2-4 | 9 | ≤4.5 | 23 | 34-30/30 |
| A-M32×1.5-H6-3 | A-PG21-H6-3 | A-NPT3/4-H6-3 | A-G3/4-H6-3 | 6×3 | 1-3 | 9 | ≤4.5 | 23 | 34-30/30 |
| A-M32×1.5-H7-2 | A-PG21-H7-2 | A-NPT3/4-H7-2 | A-G3/4-H7-2 | 7×2 | 0.5-2 | 9 | ≤4.5 | 23 | 34-30/30 |
| A-M40×1.5-H2-8 | A-PG29-H2-8 | A-NPT1-1/4-H2-8 | A-G1-1/4-H2-8 | 2×8 | 5-8 | 11 | ≤5.5 | 32 | 44-40/40 |
| A-M40×1.5-H3-8 | A-PG29-H3-8 | A-NPT1-1/4-H3-8 | A-G1-1/4-H3-8 | 3×8 | 5-8 | 11 | ≤5.5 | 32 | 44-40/40 |
| A-M40×1.5-H4-8 | A-PG29-H4-8 | A-NPT1-1/4-H4-8 | A-G1-1/4-H4-8 | 4×8 | 5-8 | 11 | ≤5.5 | 32 | 44-40/40 |
| A-M40×1.5-H5-6 | A-PG29-H5-6 | A-NPT1-1/4-H5-6 | A-G1-1/4-H5-6 | 5×6 | 3-6 | 11 | ≤5.5 | 32 | 44-40/40 |
| A-M40×1.5-H6-5 | A-PG29-H6-5 | A-NPT1-1/4-H6-5 | A-G1-1/4-H6-5 | 6×5 | 3-5 | 11 | ≤5.5 | 32 | 44-40/40 |
| A-M40×1.5-H7-5 | A-PG29-H7-5 | A-NPT1-1/4-H7-5 | A-G1-1/4-H7-5 | 7×5 | 3-5 | 11 | ≤5.5 | 32 | 44-40/40 |
| A-M50×1.5-H2-12 | A-PG36-H2-12 | A-NPT1-1/2-H2-12 | A-G1-1/2-H2-12 | 2×12 | 22-32 | 11 | ≤5.5 | 32 | 54-50/50 |
| A-M50×1.5-H3-11 | A-PG36-H3-11 | A-NPT1-1/2-H3-11 | A-G1-1/2-H3-11 | 3×11 | 22-32 | 11 | ≤5.5 | 32 | 54-50/50 |
| A-M50×1.5-H4-9 | A-PG36-H4-9 | A-NPT1-1/2-H4-9 | A-G1-1/2-H4-9 | 4×9 | 22-32 | 11 | ≤5.5 | 32 | 54-50/50 |
| A-M50×1.5-H5-8 | A-PG36-H5-8 | A-NPT1-1/2-H5-8 | A-G1-1/2-H5-8 | 5×8 | 22-32 | 11 | ≤5.5 | 32 | 54-50/50 |
| A-M50×1.5-H6-7 | A-PG36-H6-7 | A-NPT1-1/2-H6-7 | A-G1-1/2-H6-7 | 6×7 | 22-32 | 11 | ≤5.5 | 32 | 54-50/50 |
| A-M50×1.5-H7-7 | A-PG36-H7-7 | A-NPT1-1/2-H7-7 | A-G1-1/2-H7-7 | 7×7 | 22-32 | 11 | ≤5.5 | 32 | 54-50/50 |
| A-M20×1.5-W4H10 | A-PG13.5-W4H10 | A-NPT1/2-W4H10 | A-G1/2-W4H10 | 1 | 4×10 | 8 | ≤4.5 | 23 | 22/22 |
| A-M20×1.5-W3H11 | A-PG13.5-W3H11 | A-NPT1/2-W3H11 | A-G1/2-W3H11 | 1 | 3×11 | 8 | ≤4.5 | 23 | 22/22 |
| A-M25×1.5-W6H13 | A-PG16-W6H13 | A-NPT3/4-W6H13 | A-G3/4-W6H13 | 1 | 6×13 | 9 | ≤4.5 | 23 | 28/24 |
| A-M32×1.5-W5H17 | A-PG21-W5H17 | A-NPT3/4-W5H17 | A-G3/4-W5H17 | 1 | 5×17 | 9 | ≤4.5 | 23 | 34-30/30 |
| A-M40×1.5-W8H25 | A-PG29-W8H25 | A-NPT1-1/4-W8H25 | A-G1-1/4-W8H25 | 1 | 8×25 | 11 | ≤5.5 | 32 | 44-40/40 |
| A-M50×1.5-W6H30 | A-PG36-W6H30 | A-NPT1-1/2-W6H30 | A-G1-1/2-W6H30 | 1 | 6×30 | 11 | ≤5.5 | 32 | 54-50/50 |
| A-M63×1.5-W9H43 | A-PG48-W9H43 | A-NPT2-W9H43 | A-G2-W9H43 | 1 | 9×43 | 18 | ≤12.5 | 38 | 68-64/64 |
