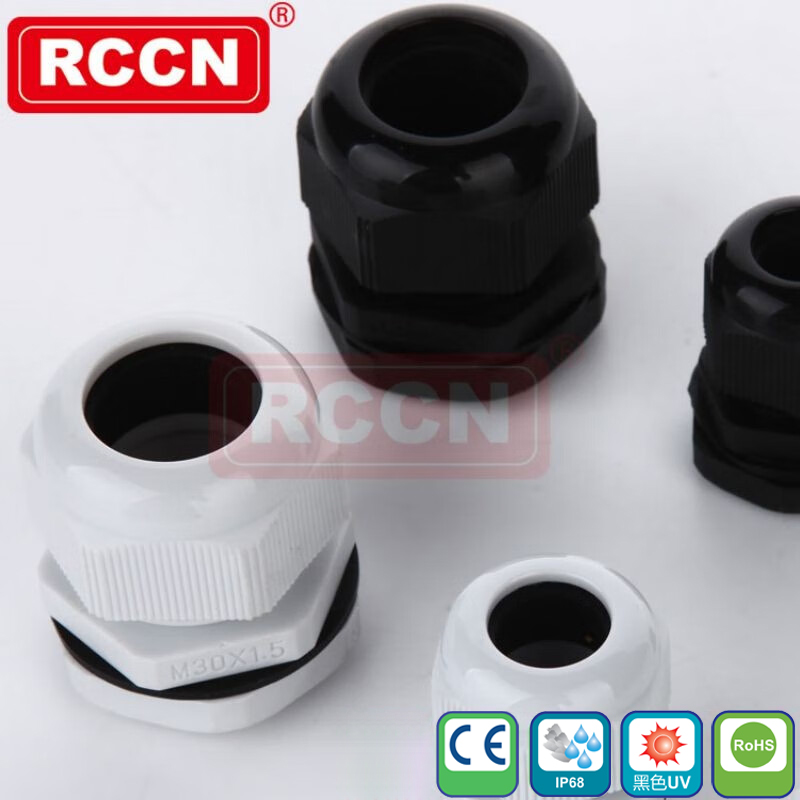

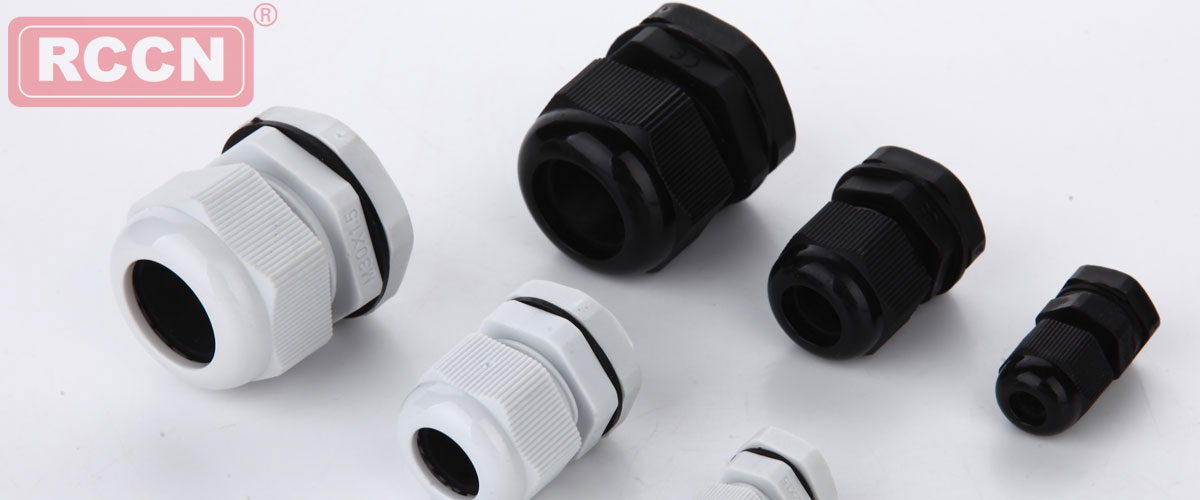

日成公制電纜接頭 AG

特點:公制電纜接頭 M型熱銷

螺牙規格:公制螺牙(Metric/EN50262)。

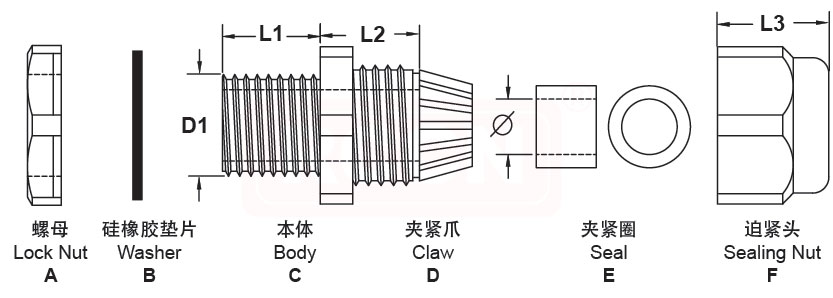

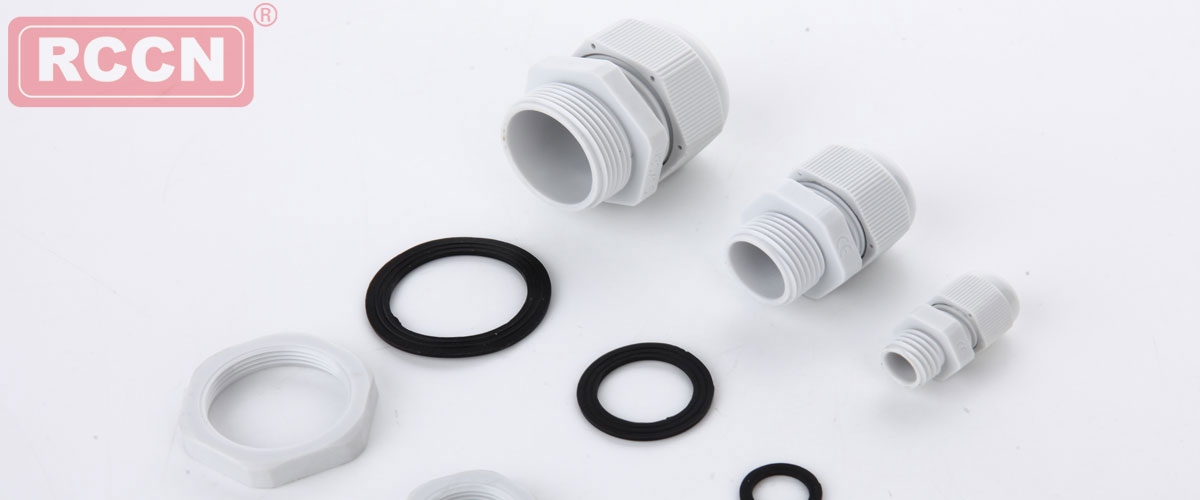

產品材質:A.C.D.F部位均采用環保尼龍66原料制成.B耐老化硅橡膠制成.E采用?耐油丁腈橡膠制成。
產品認證:歐洲CE 歐洲環保SGS,REACH。
防火等級:UL94V-2。
防護等級:在規定的卡口范圍內,并使用防水墊片及夾緊圈旋緊迫緊頭,達到IP68。

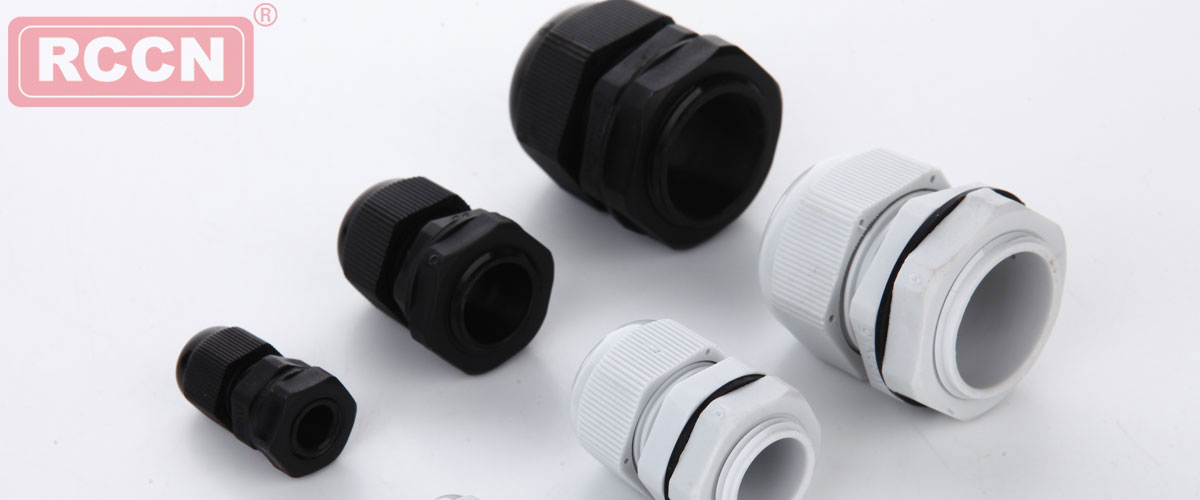

顏色種類:灰白色、黑色。

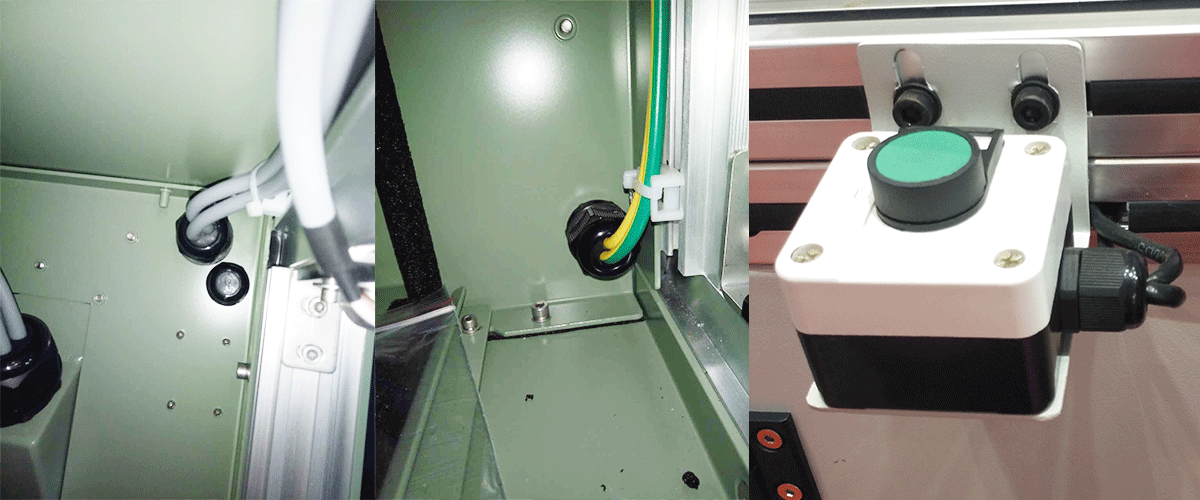

使用方法:先將本體穿于機板,再以螺母扭緊固定,線纜穿過迫緊頭,扭緊迫緊頭將其固定。
工作溫度:靜態-40°C至85°C。

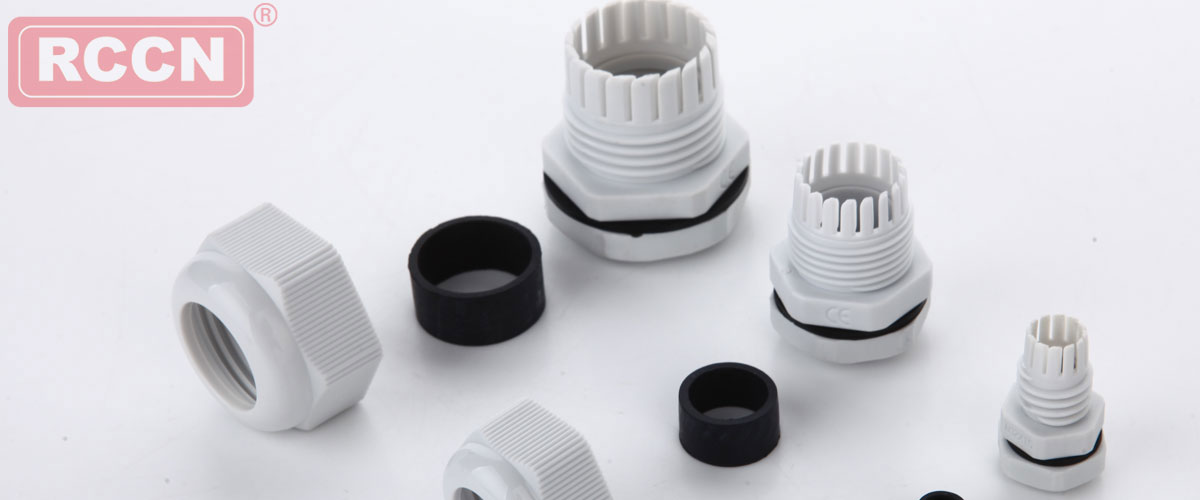

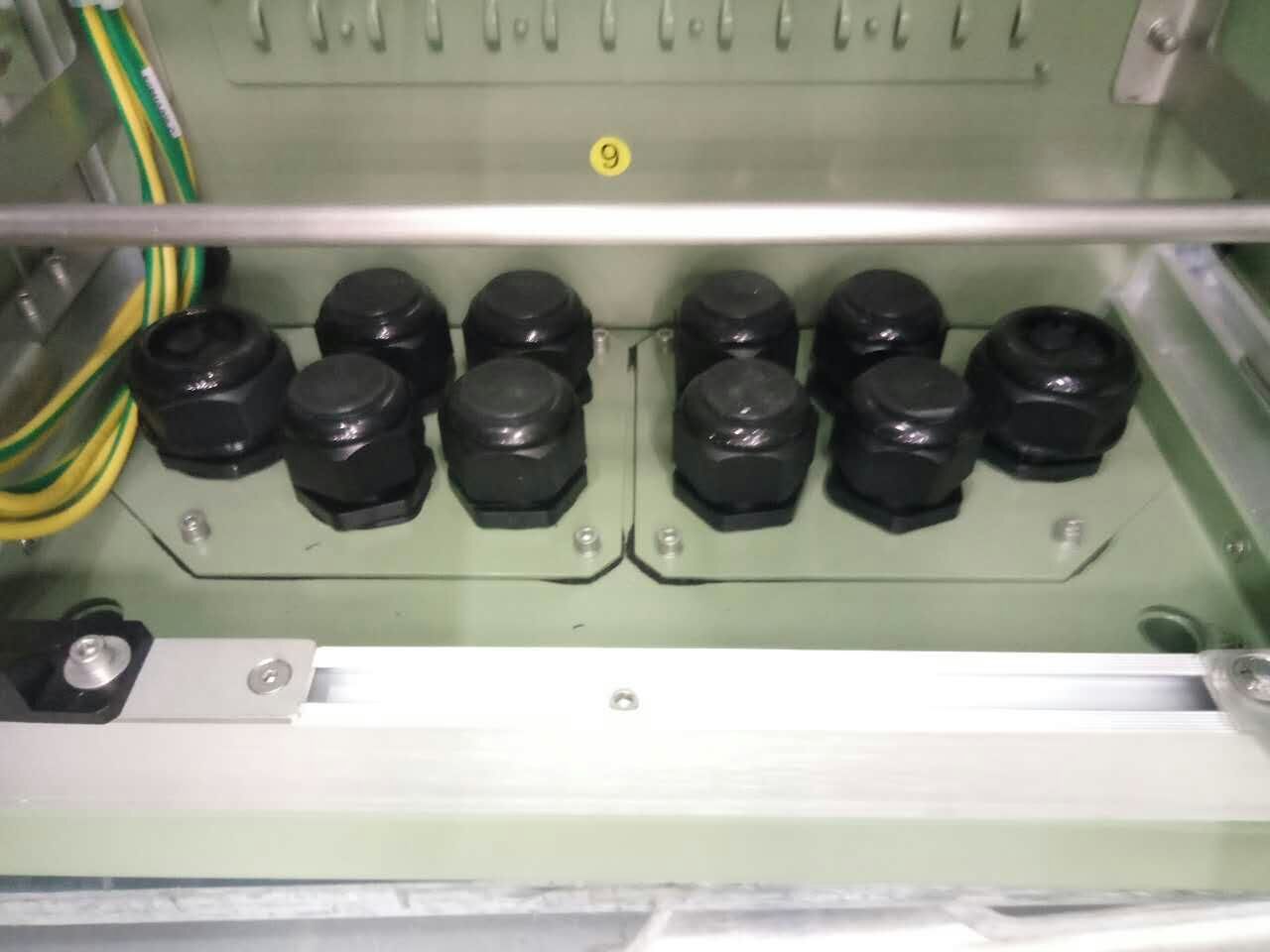

產品特性:夾緊爪與夾緊圈一體成型之設計,配合迫緊頭裝配省時便利,夾緊電纜范圍大,抗拉力強,可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及一般溶劑。應用于電纜出線端的固定保護及密封防塵水。

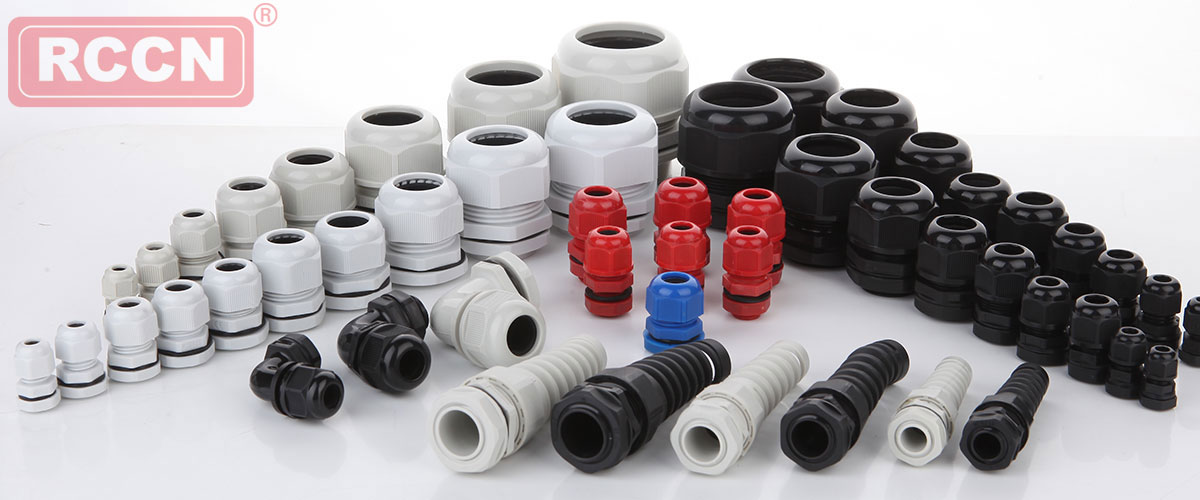

更多選擇:另備多種范圍夾緊圈,戶外用時要求高的環境橡膠需通知更換為耐老化硅橡膠材質-AGH型。型號例：AG-12WH

電纜接頭電纜防水接頭塑料接頭尼龍格蘭頭

產品規格

型號 Item No.		螺牙規格 Thread ?	適用電纜外徑 CableRange Φ	螺紋外徑 Thread O.D. D1	機板開孔 Panel Mounting Hole	螺紋長度 Thread Length L1	接合長度 Joint Length L2+L3	板手 Spanner size A&F
灰白色 White	黑色 Black	螺牙規格 Thread ?	適用電纜外徑 CableRange Φ	螺紋外徑 Thread O.D. D1	機板開孔 Panel Mounting Hole	螺紋長度 Thread Length L1	接合長度 Joint Length L2+L3	板手 Spanner size A&F
短螺紋標準型standard
AG-12W	AG-12B	M12×1.5	3-6.5	12	12-12.3	8	22	17/16
AG-14W	AG-14B	M14×1.5	4-8	14	14-14.3	8	26	19/19
AG-16W	AG-16B	M16×1.5	4-8	16	16-16.3	8	26	22/19
AG-16DW	AG-16DB	M16×1.5	5-10	16	16-16.3	8	26	22/22
AG-18W	AG-18B	M18×1.5	5-10	18	18-18.3	8	27	24/22
AG-20W	AG-20B	M20×1.5	6-12	20	20-20.3	9	28	27/24
AG-20DW	AG-20DB	M20×1.5	10-14	20	20-20.3	10	28	27/27
AG-22W	AG-22B	M22×1.5	10-14	22	22-22.3	10	30	30/27
AG-24W	AG-24B	M24×1.5	12-15	24	24-24.4	10	30	30/27
AG-25SW	AG-25SB	M25×1.5	9-16	25	25-25.4	10	35	32/33
AG-25W	AG-25B	M25×1.5	13-18	25	25-25.4	10	35	32/33
AG-27W	AG-27B	M27×1.5	13-18	27	27-27.4	10	35	36/33
AG-30W	AG-30B	M30×1.5	16-21	30	30-30.4	11	35	37/36
AG-32W	AG-32B	M32×1.5	16-21	32	32-32.4	11	35	39/37
AG-32DW	AG-32DB	M32×1.5	18-25	32	32-32.4	12	40	39/42
AG-36W	AG-36B	M36×1.5	18-25	36	36-36.4	12	40	45-41/42
AG-40W	AG-40B	M40×1.5	22-32	40	40-40.4	14	48	50/53
AG-50W	AG-50B	M50×1.5	32-38	50	50-50.4	14	49	60/61
AG-63W	AG-63B	M63×1.5	37-44	63	63-63.4	14	50	74/67
AG-75W	AG-75B	M75×2.0	53-60	75	75-75.4	25	65	86/82
夾緊圈加厚型thickening
AG-10W	AG-10B	M10×1	3-6.5	12	12-12.3	8	22	15/15
AG-12SW	AG-12SB	M12×1.5	2-5	12	12-12.3	8	22	17/16
AG-14SW	AG-14SB	M14×1.5	2-6	14	14-14.3	8	26	19/19
AG-16SW	AG-16SB	M16×1.5	2-6	16	16-16.3	8	26	22/19
AG-18SW	AG-18SB	M18×1.5	3-7	18	18-18.3	8	27	24/22
AG-20SW	AG-20SB	M20×1.5	5-9	20	20-20.3	9	28	27/24
AG-22SW	AG-22SB	M22×1.5	7-12	22	22-22.3	10	30	30/27
AG-24SW	AG-24SB	M24×1.5	7-12	24	24-24.4	10	30	30/27
AG-25SW	AG-25SB	M25×1.5	9-16	25	25-25.4	10	35	35/33
AG-27SW	AG-27SB	M27×1.5	9-16	27	27-27.4	10	35	36/33
AG-30SW	AG-30SB	M30×1.5	7-15	30	30-30.4	11	35	37/36
AG-32W(7-15)	AG-32B(7-15)	M32×1.5	7-15	32	32-32.4	11	35	39/37
AG-32W(13-20)	AG-32B(13-20)	M32×1.5	18-25	32	32-32.4	12	40	39-41/42
AG-36SW	AG-36SB	M36×1.5	13-20	36	36-36.4	12	40	45-41/42
AG-40SW	AG-40SB	M40×1.5	20-26	40	40-40.4	14	48	50/53
AG-50SW	AG-50SB	M50×1.5	25-31	50	50-50.4	14	49	60/61
AG-63SW	AG-63SB	M63×1.5	29-35	63	63-63.4	14	50	74/67
AG-75SW	AG-75SB	M75×2.0	48-55	75	75-75.4	25	65	86-82

型號 Item No.		螺牙規格 Thread	適用電纜外徑 CableRange ￠	螺紋外徑 Thread O.D. D1	機板開孔 Panel Mounting Hole	螺紋長度 Thread Length L1	接合長度 Joint Length L2+L3	板手 Spanner size A&F
灰白色 White	黑色 Black	螺牙規格 Thread	適用電纜外徑 CableRange ￠	螺紋外徑 Thread O.D. D1	機板開孔 Panel Mounting Hole	螺紋長度 Thread Length L1	接合長度 Joint Length L2+L3	板手 Spanner size A&F
加長標準型
AG-12LW	AG-12LB	M12×1.5	3-6.5	12	12-12.3	15	22	17/16
AG-16LW	AG-16LB	M16×1.5	4-8	16	16-16.3	15	26	22/19
AG-16DLW	AG-16DLB	M16×1.5	5-10	16	16-16.3	15	26	22/22
AG-18LW	AG-18LB	M18×1.5	5-10	18	18-18.3	15	27	24/22
AG-20LW	AG-20LB	M20×1.5	6-12	20	20-20.3	15	28	27/24
AG-20DLW	AG-20DLB	M20×1.5	8-14	20	20-20.3	15	28	27/27
AG-22LW	AG-22LB	M22×1.5	10-14	22	22-22.3	15	30	30/27
AG-24LW	AG-24LB	M24×1.5	12-15	24	24-24.4	15	30	30/27
AG-25SLW	AG-25SLB	M25×1.5	9-16	25	25-25.4	15	35	32/33
AG-25LW	AG-25LB	M25×1.5	13-18	25	25-25.4	15	35	32/33
AG-32LDW	AG-32LDB	M32×1.5	18-25	32	32-32.4	16	35	41/42
AG-40LW	AG-40LB	M40×1.5	22-32	40	40-40.4	18	48	50/53
AG-50LW	AG-50LB	M50×1.5	32-38	50	50-50.4	20	49	60/61
AG-63LW	AG-63LB	M63×1.5	37-44	63	63-63.4	19	50	74/67
加長加厚型
AG-12SLW	AG-12SLB	M12×1.5	2-5	12	12-12.3	15	22	17/16
AG-14SLW	AG-14SLB	M14×1.5	2-6	14	14-14.3	15	26	19/19
AG-16SLW	AG-16SLB	M16×1.5	2-6	16	16-16.3	15	26	22/19
AG-18SLW	AG-18SLB	M18×1.5	3-7	18	18-18.3	15	27	24/22
AG-20SLW	AG-20SLB	M20×1.5	5-9	20	20-20.3	15	28	27/24
AG-22SLW	AG-22SLB	M22×1.5	7-12	22	22-22.3	15	30	30/27
AG-32LW(13-20)	AG-32LB(13-20)	M32×1.5	13-20	32	32-32.4	15	40	39/42
AG-40SLW(15-23)	AG-40SLB(15-23)	M40×1.5	15-23	40	40-40.4	18	48	50/46
AG-40SLW(19-28)	AG-40SLB(19-28)	M40×1.5	19-28	40	40-40.4	18	48	50/46
AG-40SLW	AG-40SLB	M40×1.5	20-26	40	40-40.4	18	48	50/53
AG-50SLW(27-35)	AG-50SLB(27-35)	M50×1.5	27-35	50	50-50.4	18	49	60/56
AG-50SLW(22-29)	AG-50SLB(22-29)	M50×1.5	22-29	50	50-50.4	18	49	60/56
AG-50SLW	AG-50SLB	M50×1.5	25-31	50	50-50.4	18	49	60/61
AG-63SLW	AG-63SLB	M63×1.5	29-35	63	63-63.4	19	50	74/67
AG-63DLW(34-45)	AG-63DLB(34-45)	M63×1.5	34-45	63	63-63.4	19	57	74/68
AG-63SLW(28-39)	AG-63SLB(28-39)	M63×1.5	28-39	63	63-63.4	19	57	74/68
