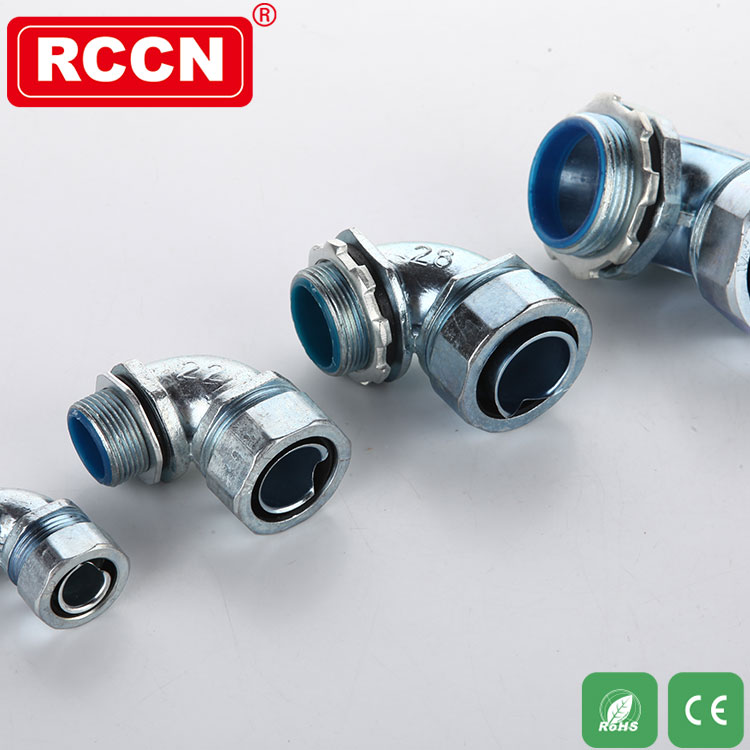

金屬軟管接頭,金屬接頭

螺牙規格:管螺紋G/PF牙,公制螺紋Metric,德制螺紋PG

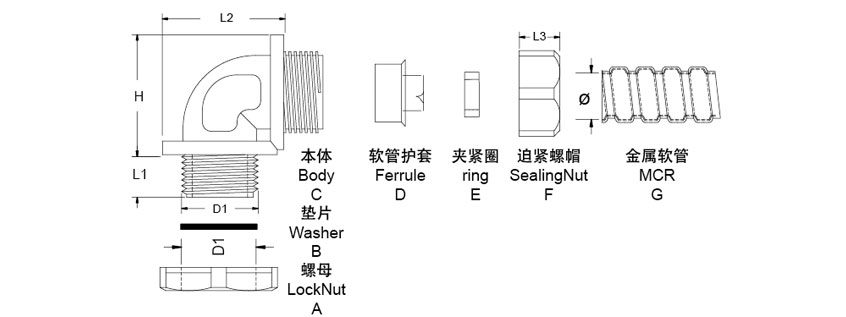

產品材質:A.C.F部位均采用優質鋅合金制成.B.E采用丁腈橡膠(NBR)制成.D為鐵皮壓鑄制成.
產品認證:歐洲CE,歐洲環保RoHS
顏色種類:金屬色
工作溫度:-40°C至100°C,瞬間可耐熱達120°C.
產品特性: 1.接合后和箱體成90度,加厚型鋅合金鍍鋅或硬鉻,外型美觀,結構緊密,強度高.
2.除以下標準規格外,可另按需求任意變動大小及螺紋標準.

型號 Item No.	螺牙標準 Thread G/M/PG	配套日成金屬軟管MCR			螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1	接合長度 Joint Length L2+L3	包裝 Packing pcs ?
型號 Item No.	螺牙標準 Thread G/M/PG	對應型號	公制	英制	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1	接合長度 Joint Length L2+L3	包裝 Packing pcs ?
管螺紋 NBG-G
NBW-04G	G3/8"	MCR-04	13	3/8"	16.5	8	50	30
NBW-05G	G1/2"	MCR-05	16	1/2"	21.3	11	54	30
NBW-06G	G3/4"	MCR-06	20	3/4"	26.6	14	60	30
NBW-08G	G1"	MCR-08	25	1"	33.4	15	70	20
NBW-10G	G1 1/4"	MCR-10	32	1 1/4"	42.1	15	90	20
NBW-12G	G1 1/2"	MCR-12	38	1 1/2"	47.8	16	100	20
NBW-16G	G2"	MCR-16	51	2"	59.6	18	120	10
NBW-20G	G2 1/2"	MCR-20	64	2 1/2"	75.1	22	160	10
NBW-24G	G3"	MCR-24	80	3"	87.8	22	190	5
NBW-32G	G4"	MCR-32	100	4"	113	24	220	5
公制螺紋 NBG-M
NBW-04M	M16*1.5	MCR-04	13	3/8"	16	8	50	30
NBW-05M	M20*1.5	MCR-05	16	1/2"	20	11	54	30
NBW-06M	M25*1.5	MCR-06	20	3/4"	25	14	60	30
NBW-08M	M32*1.5	MCR-08	25	1"	32	15	70	20
NBW-10M	M40*1.5	MCR-10	32	1 1/4"	40	15	90	20
NBW-12M	M50*1.5	MCR-12	38	1 1/2"	50	16	100	20
NBW-16M	M63*1.5	MCR-16	51	2"	63	18	120	10
德制螺紋 NBG-PG
NBW-04P	PG11	MCR-04	13	3/8"	18.6	8	50	30
NBW-05P	PG13.5	MCR-05	16	1/2"	20.4	11	54	30
NBW-06P	PG21	MCR-06	20	3/4"	28.3	14	60	30
NBW-08P	PG29	MCR-08	25	1"	37.0	15	70	20
NBW-10P	PG29	MCR-10	32	1 1/4"	37.0	15	90	20
NBW-12P	PG36	MCR-12	38	1 1/2"	47.0	16	100	20
NBW-16P	PG48	MCR-16	51	2"	59.3	18	120	10
