特點: 英制接頭 G,尼龍格蘭頭

螺牙規格:美制螺牙(NPT)。
產品材質:C.D.F部位均采用通過.認證尼龍66(NYLON66)原料制成.E采用丁腈橡膠(NBR)制成。
產品認證:歐洲CE:EN50262歐洲環保SGS:,美國UL,防爆EX認證。
防火等級:.94V-2。
防護等級:在規定的卡口范圍內,并使用O形密封圈旋緊迫緊頭,防水達到IP68。
顏色種類:灰白色、黑色,特殊顏色如灰/紅/藍均可訂做。
工作溫度:-40°C至85°C。
產品特性:夾緊爪與夾緊圈一體成型之設計,配合迫緊頭裝配省時便利,夾緊電纜范圍大,抗拉力特強,可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及一般溶劑。
更多選擇:備加長型及多種范圍夾緊圈,夾緊圈備有帶防水膜型.適合多種需求。

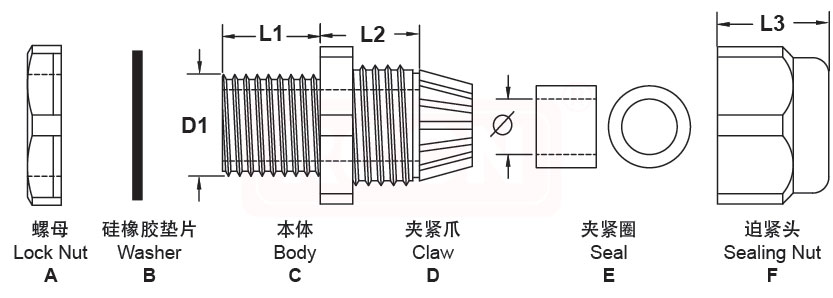

型號Item No.			螺牙規格 Thread ?	適用電纜外徑 CableRange ?Φ	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1	接合長度 Thread Length L2	板手 Spanner size A&F
灰白色 White		黑色 Black	螺牙規格 Thread ?	適用電纜外徑 CableRange ?Φ	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1	接合長度 Thread Length L2	板手 Spanner size A&F
標準型 standard	NPT 1/4W	NPT 1/4B	NPT 1/4"	3-6.5	13.616	8	22	19/16
	NPT 3/8W	NPT 3/8B	NPT 3/8"	4-8	17.055	15	26	24/19
	NPT 1/2W	NPT 1/2B	NPT 1/2"	6-12	21.223	13	30	27/24
	NPT 1/2DW	NPT 1/2DB	NPT 1/2"	10-14	21.223	13	30	27/27
	NPT 3/4W	NPT 3/4B	NPT 3/4"	13-18	26.568	15	37	32/33
	NPT 1W	NPT 1B	NPT 1 "	18-25	33.227	16	40	40/41
	NPT1-1/4W	NPT1-1/4B	NPT 11/4"	18-25	41.984	18	48	50/46
	NPT1-1/2W	NPT1-1/2B	NPT 11/2"	22-32	48.053	15	49	60/53
	NPT 2W	NPT 2B	NPT 2"	37-44	60.091	20	50	69/65
	G1/4W	G1/4B	G 1/4"	3-6.5	13.2	8	22	19/16
	G3/8W	G3/8B	G 3/8"	4-8	16.7	15	26	24/19
	G1/2W	G1/2B	G 1/2"	6-12	20.9	13	30	27/24
	G1/2DW	G1/2DB	G 1/2"	10-14	20.9	13	30	27/27
	G3/4W	G3/4B	G 3/4"	13-18	26.4	15	37	32/33
	G1W	G1B	G 1"	18-25	33.2	16	40	40/41
	G1-1/4W	G1-1/4B	G 11/4"	22-32	41.9	18	48	50/46
	G1-1/2W	G1-1/2B	G 11/2"	32-48	47.8	15	49	60/53
	G2W	G2B	G 2"	37-44	59.6	15	50	69/65
加厚型 thickening	NPT 1/4SW	NPT 1/4SB	NPT 1/4"	2-5	13.616	8	22	19/16
	NPT 3/8SW	NPT 3/8SB	NPT 3/8"	2-6	17.055	15	26	24/19
	NPT 1/2SW	NPT 1/2SB	NPT 1/2"	5-9	21.223	13	30	27/24
	NPT 1/2SW(7-12)	NPT 1/2SB(7-12)	NPT 1/2"	7-12	21.223	13	30	27/27
	NPT 3/4SW	NPT 3/4SB	NPT 3/4"	9-16	26.568	15	37	32/33
	NPT 1SW	NPT 1SB	NPT 1 "	13-20	33.227	16	40	40/41
	NPT1-1/4SW	NPT1-1/4SB	NPT 11/4"	13-20	41.984	18	48	50/46
	NPT1-1/2SW	NPT1-1/2SB	NPT 11/2"	20-26	48.053	15	49	60/53
	G1/4SW	G1/4SB	G 1/4"	2-5	13.2	8	22	19/16
	G3/8SW	G3/8SB	G 3/8"	2-6	16.7	15	26	24/19
	G1/2SW	G1/2SB	G 1/2"	5-9	20.9	13	30	27/24
	G1/2SW(7-12)	G1/2SB(7-12)	G1/2"	7-12	20.9	13	30	27/27
	G3/4SW	G3/4SB	G 3/4"	9-16	26.4	15	37	32/33
	G1SW	G1SB	G 1"	13-20	33.2	16	40	40/41
	G1-1/4SW	G1-1/4SB	G 11/4"	13-20	41.9	18	48	50/46
	G1-1/2SW	G1-1/2SB	G 11/2"	20-26	47.8	15	49	60/53
	G2SW	G2SB	G 2"	29-35	59.6	15	50	69/65
