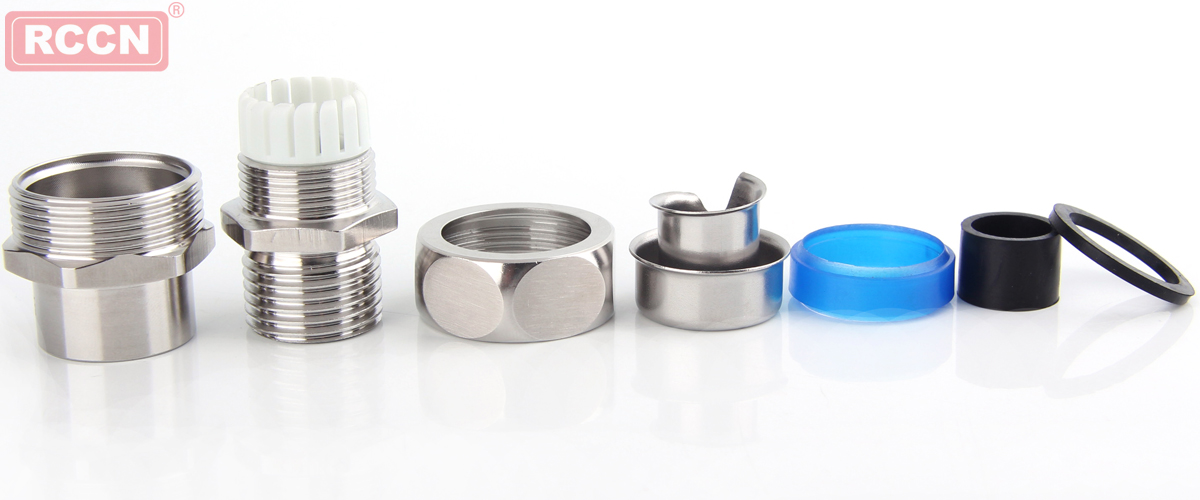

材 質:外部金屬為不銹鋼304 ;密封件為改性橡膠;芯套為PA6 ,護套為鍍鋅鐵皮/不銹鋼
密封套:TPE
防護等級:IP65
溫度范圍:-40℃到100℃ ,短時間可以達到+120℃
材 質:外部金屬為不銹鋼304 ;密封件為改性橡膠;芯套為PA6 ,護套為鍍鋅鐵皮/不銹鋼
密封套:TPE
防護等級:IP65
溫度范圍:-40℃到100℃ ,短時間可以達到+120℃

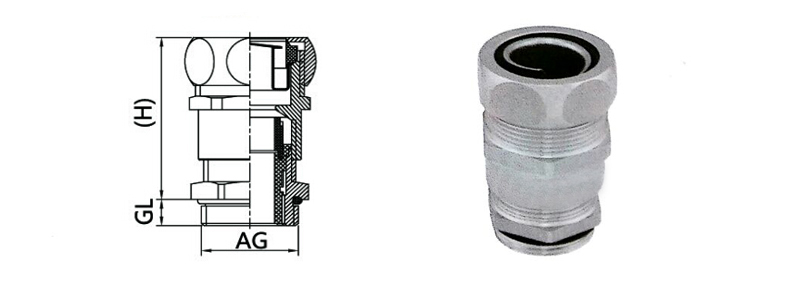

型號 Item?No?. | 螺紋規格 Thread? mm | 卡口范圍 ?clamping ?mm | 螺紋長度 ?GL mm | 扳手尺寸? Wrench?size? mm | 適配軟管(公稱內徑)? Fits?to?tubing?size?(Nominal?inner) mm | 包裝 Std.Pkg?PCS |
NBLS-M帶鎖緊金屬軟管接頭 | ||||||
NBLS -01M | M12x1.5 | 3-5.5 | 6 | 18/17/14 | φ6 | 25 |
NBLS?-02M | M16x1.5 | 4-7 | 7 | 20/19/18 | φ8 | 25 |
NBLS?-03M | M18x1.5 | 5-9 | 7 | 24/23/20 | φ10 | 25 |
NBLS?-04M | M20x1.5 | 6-11 | 7 | 26/26/22 | φ13 | 25 |
NBLS?-05M | M20x1.5 | 6-12 | 7 | 30/28/24 | φ16 | 25 |
NBLS?-05M | M22x1.5 | 8-14 | 7 | 30/30/24 | φ16 | 25 |
NBLS?-05M | M24x1.5 | 8-14 | 7 | 30/30/27 | φ16 | 25 |
NBLS?-05M | M25x1.5 | 8-14 | 7 | 30/30/28 | φ16 | 25 |
NBLS?-06M | M25x1.5 | 13-18 | 7 | 36/34/30 | φ20 | 25 |
NBLS?-06M | M32x1.5 | 13-18 | 8 | 36/34/36 | φ20 | 10 |
NBLS?-08M | M32x1.5 | 15-22 | 8 | 45/40/36 | φ25 | 10 |
NBLS?-08M | M36x2.0 | 15-22 | 8 | 45/45/40 | φ25 | 10 |
NBLS?-10M | M40x1.5 | 22-30 | 9 | 55/52/45 | φ32 | 5 |
NBLS?-10M | M48x2.0 | 22-30 | 9 | 55/52/55 | φ32 | 5 |
NBLS?-12M | M40x1.5 | 22-32 | 9 | 60/58/50 | φ38 | 5 |
NBLS?-12M | M50x1.5 | 30-35 | 9 | 60/58/55 | φ38 | 5 |
NBLS?-12M | M56x2.0 | 30-35 | 9 | 60/58/60 | φ38 | 2 |
NBLS?-16M | M50x1.5 | 30-38 | 9 | 75/75/75 | φ51 | 2 |
NBLS?-16M | M60x1.5 | 37-44 | 10 | 75/75/70 | φ51 | 2 |
NBLS-P 帶鎖緊不銹鋼軟管接頭 | ||||||
NBLS?-02P | PG7 | 3-5.5 | 6 | 18/17/14 | φ6 | 25 |
NBLS?-03P | PG9 | 4-7? | 7 | 20/19/17 | φ8 | 25 |
NBLS?-04P | PG11 | 5-9 | 7 | 24/23/20 | φl0 | 25 |
NBLS?-05P | PG13.5 | 6-11 | 7 | 26/26/22 | φl2 | 25 |
NBLS?-05P | PG16 | 8-14 | 7 | 30/30/24 | φl5 | 25 |
NBLS?-06P | PG21 | 13-18 | 8 | 36/34/30 | φ20 | 10 |
NBLS?-08P | PG29 | 15-22 | 8 | 45/45/40 | φ25 | 10 |
NBLS?-12P | PG36 | 22-30 | 9 | 55/52/50 | φ32 | 5 |
NBLS?-15P | PG42 | 30-35 | 9 | 60/58/58 | φ38 | 5 |
NBLS?-16P | PG48 | 37-44 | 10 | 75/75/65 | φ38 | 2 |
