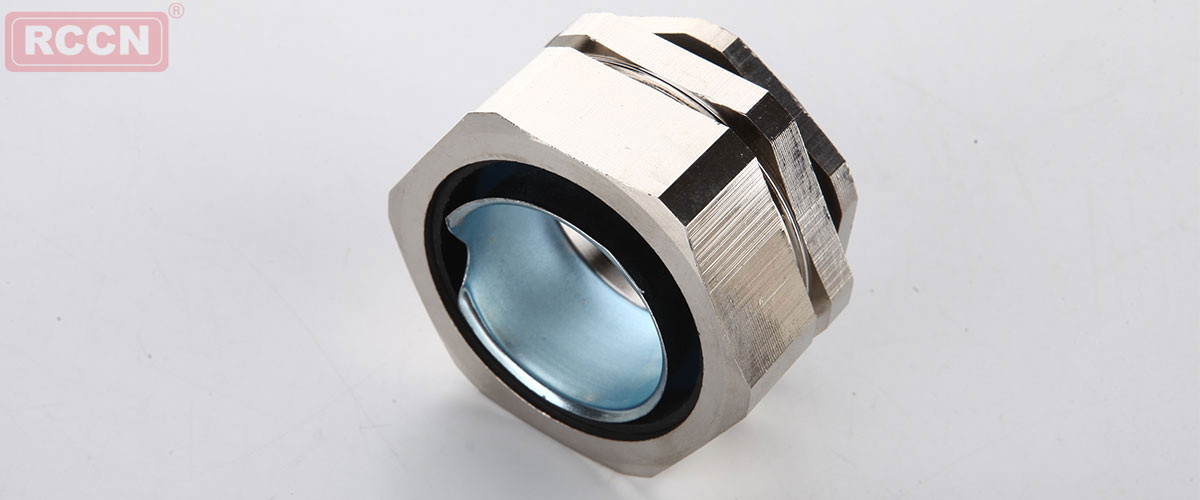

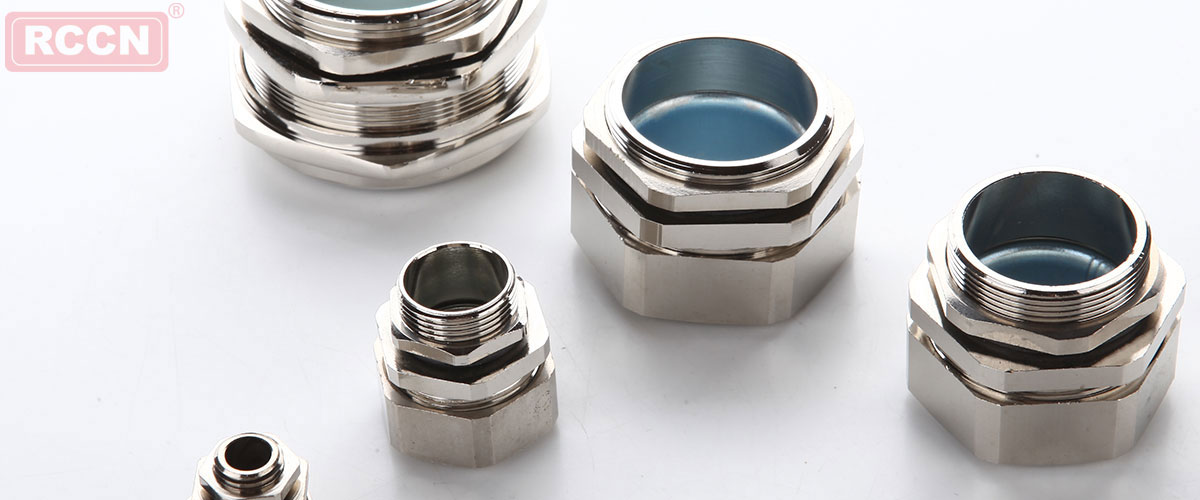

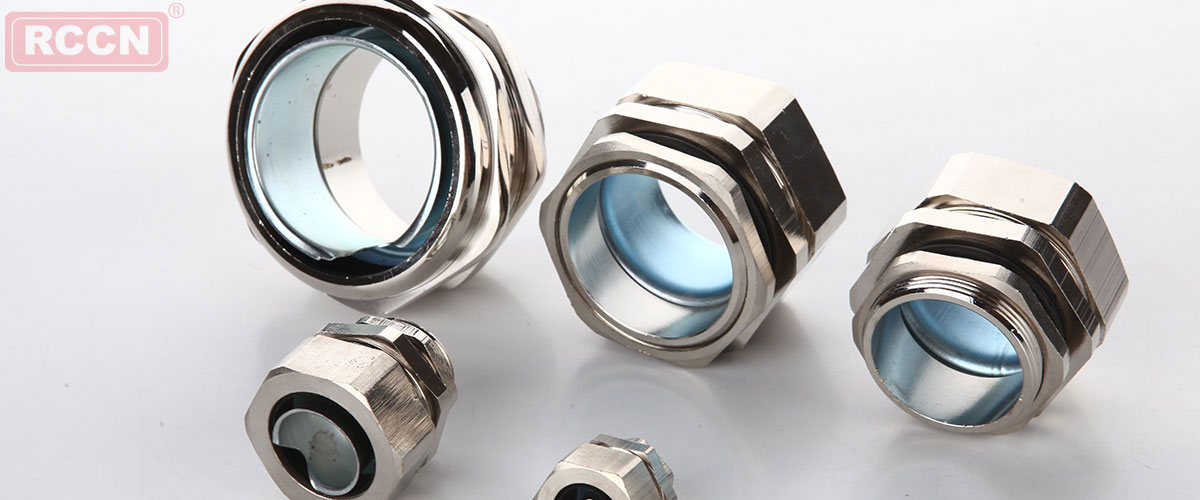

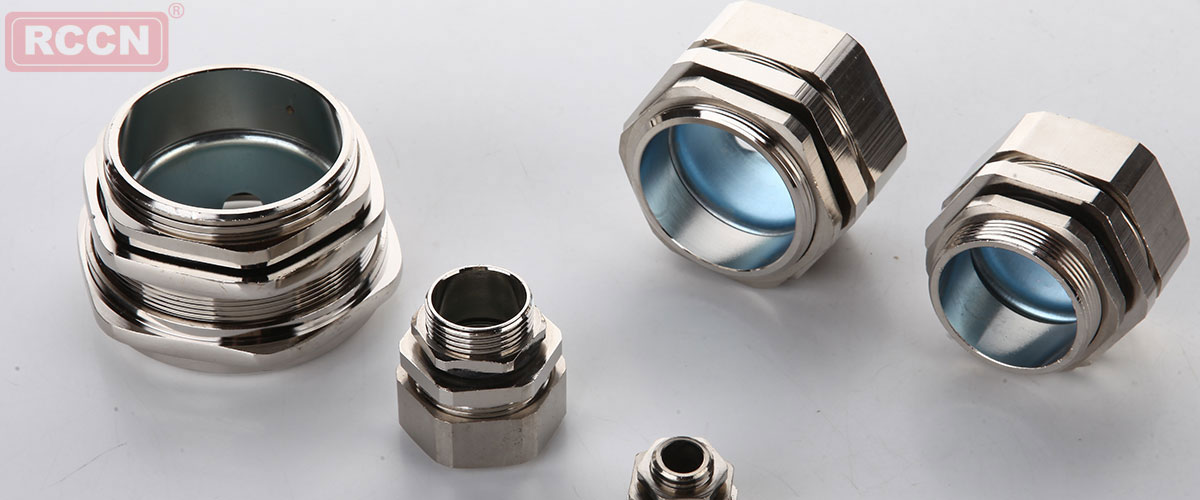

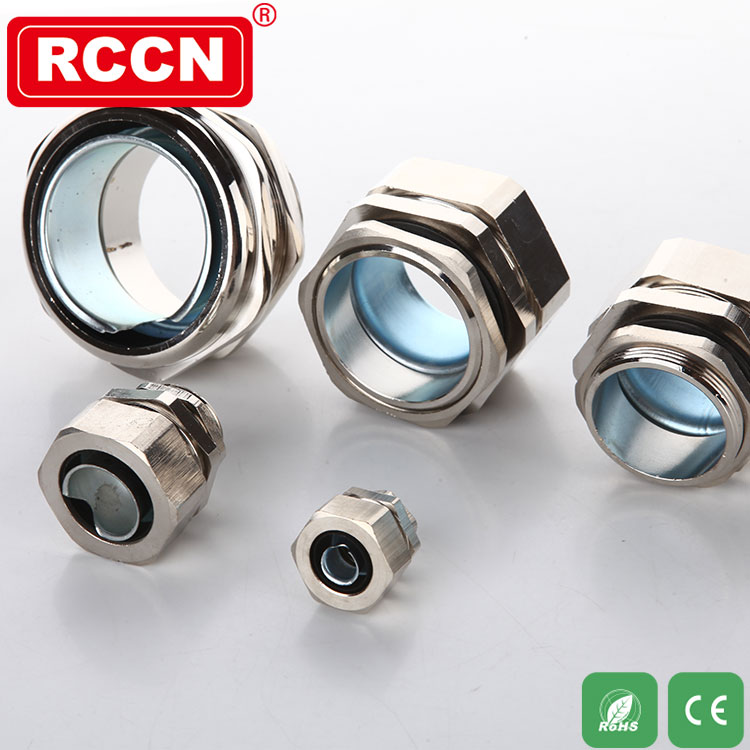

銅制軟管接頭,金屬軟管接頭

螺牙規格:管螺紋G/PF牙,公制螺紋Metric,德制螺紋 PG
產品材質:A.C.F部位優質加厚型黃銅（鍍鎳）制成.B.E丁腈橡膠(NBR)制成.D鐵皮制成.
產品認證:歐洲CE,歐洲環保RoHS? /? 顏色:黃色?? /?? 防護等級:IP54
工作溫度:-40°C至100°C,瞬間可耐熱達120°C.
產品特性: 1.加厚型黃銅（鍍鎳）制成,外型美觀,結構緊密,強度高.
??????????????? 2.軟管護套設計與軟管相扣接緊之設計,配合迫緊頭裝配省時便利,抗拉力特強,
??????????????? 3.可防水、防塵、抗鹽、耐酸堿、酒精、油、脂及一般溶劑.
??????????????? 4.除以下標準規格外,可另按需求任意變動大小及螺紋標準.
備?????? 注:成品均配帶螺母A及防水墊片B可定制特殊規格不同的螺紋和配套和管

型號 Item No.	螺牙標準 Thread G/M/PG	配套日成金屬軟管MCR			螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1
型號 Item No.	螺牙標準 Thread G/M/PG	對應型號	公制	英制	螺紋外徑 Thread O.D. D1	螺紋長度 Thread Length L1
公制螺紋 TNBG-M
TNBG-01M	M14*1.5	MCR-01	6	3/16"	M14*1.5	8
TNBG-02M	M14*1.5	MCR-02	8	5/16"	M14*1.5	8
TNBG-03M	M16*1.5	MCR-03	10	1/4	M16*1.5	8
TNBG-04M	M16*1.5	MCR-04	13	3/8"	M16*1.5	8
TNBG-05M	M20*1.5	MCR-05	16	1/2"	M20*1.5	11
TNBG-06M	M25*1.5	MCR-06	20	3/4"	M25*1.5	14
TNBG-08M	M32*1.5	MCR-08	25	1"	M32*1.5	15
TNBG-10M	M40*1.5	MCR-10	32	11/4"	M40*1.5	15
TNBG-12M	M50*1.5	MCR-12	38	1 1/2	M50*1.5	16
TNBG-16M	M63*1.5	MCR-16	51	2"	M63*1.5	18
管螺紋 TNBG-G
TNBG-01G	G1/4"	MCR-01	6	3/16"	13.2	8
TNBG-02G	G1/4"	MCR-02	8	5/16"	13.2	8
TNBG-03G	G3/8"	MCR-03	10	1/4"	16.5	8
TNBG-04G	G3/8"	MCR-04	13	3/8"	16.5	8
TNBG-05G	G1/2"	MCR-05	16	1/2"	21.3	11
TNBG-06G	G3/4"	MCR-06	20	3/4"	26.6	14
TNBG-08G	G1"	MCR-08	25	1"	33.4	15
TNBG-10G	G1 1/4"	MCR-10	32	11/4"	42.1	15
TNBG-12G	G1 1/2"	MCR-12	38	11/2"	47.8	16
TNBG-16G	G2"	MCR-16	51	2	59.6	18
德制螺紋 TNBG-PG
TNBG-03P	PG9	MCR-03	10	1/4"	15.2	8
TNBG-04P	PG11	MCR-04	13	3/8"	18.6	9
TNBG-05P	PG13.5	MCR-05	16	1/2"	20.4	11
TNBG-06P	PG21	MCR-06	20	3/4"	28.3	14
TNBG-08P	PG29	MCR-08	25	1"	37.0	15
TNBG-10P	PG29	MCR-10	32	1 1/4"	37.0	15
TNBG-12P	PG36	MCR-12	38	11/2"	47.0	16
TNBG-16P	PG48	MCR-16	51	2"	59.3	18
管螺紋 TNBG-NPT
TNBG-01N	NPT1/4"	MCR-01	6	3/16"	13.2	8
TNBG-02N	NPT1/4"	MCR-02	8	5/16"	13.2	8
TNBG-03N	NPT3/8"	MCR-03	10	1/4"	16.5	8
TNBG-04N	NPT3/8"	MCR-04	13	3/8"	16.5	8
TNBG-05N	NPT1/2"	MCR-05	16	1/2"	21.3	11
TNBG-06N	NPT3/4"	MCR-06	20	3/4"	26.6	14
TNBG-08N	NPT1"	MCR-08	25	1"	33.4	15
TNBG-10N	NPT1 1/4"	MCR-10	32	11/4"	42.1	15
TNBG-12N	NPT1 1/2"	MCR-12	38	11/2"	47.8	16
TNBG-16N	NPT2"	MCR-16	51	2	59.6	18
