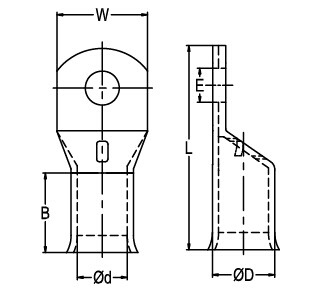

型 號 Item No. | E | φD | φd | W | B | L |
FC10-5 | 5.3 | 6.8 | 4.3 | 12 | 12 | 30.5 |
FC10-6 | 6.5 | 6.8 | 4.3 | 12 | 12 | 30.5 |
FC10-8 | 8.5 | 6.8 | 4.3 | 15 | 12 | 37 |
FC10-10 | 10.5 | 6.8 | 4.3 | 16 | 12 | 41 |
FC10-12 | 13 | 6.8 | 4.3 | 19 | 12 | 44 |
FC16-5 | 5.3 | 8 | 5.3 | 12 | 14 | 33.3 |
FC16-6 | 6.5 | 8 | 5.3 | 12 | 14 | 33.3 |
FC16-8 | 8.5 | 8 | 5.3 | 16 | 14 | 37.5 |
FC16-10 | 10.5 | 8 | 5.3 | 16 | 14 | 41.5 |
FC16-12 | 13 | 8 | 5.3 | 19 | 14 | 44 |
FC25-5 | 5.3 | 9.5 | 6.6 | 13 | 15 | 36.3 |
FC25-6 | 6.5 | 9.5 | 6.6 | 13 | 15 | 36.3 |
FC25-8 | 8.5 | 9.5 | 6.6 | 18 | 15 | 42 |
FC25-10 | 10.5 | 9.5 | 6.6 | 18 | 15 | 46 |
FC25-12 | 13 | 9.5 | 6.6 | 18 | 15 | 48 |
FC25-14 | 15 | 9.5 | 6.6 | 20 | 15 | 52.5 |
FC35-5 | 5.3 | 11 | 7.9 | 15 | 17 | 39.5 |
FC35-6 | 6.5 | 11 | 7.9 | 15 | 17 | 39.5 |
FC35-8 | 8.5 | 11 | 7.9 | 17 | 17 | 44 |
FC35-10 | 10.5 | 11 | 7.9 | 17 | 17 | 49 |
FC35-12 | 13 | 11 | 7.9 | 19 | 17 | 51 |
FC35-14 | 15 | 11 | 7.9 | 21 | 17 | 53.5 |
FC50-6 | 6.5 | 12.5 | 9.2 | 18 | 19 | 42.5 |
FC50-8 | 8.5 | 12.5 | 9.2 | 18 | 19 | 47 |
FC50-10 | 10.5 | 12.5 | 9.2 | 18 | 19 | 52 |
FC50-12 | 13 | 12.5 | 9.2 | 19 | 19 | 54 |
FC50-14 | 15 | 12.5 | 9.2 | 21 | 19 | 57.5 |
FC50-16 | 17 | 12.5 | 9.2 | 26 | 19 | 61 |
FC70-6 | 6.5 | 15 | 11 | 21 | 21 | 51 |
FC70-8 | 8.5 | 15 | 11 | 21 | 21 | 51 |
FC70-10 | 10.5 | 15 | 11 | 21 | 21 | 55 |
FC70-12 | 13 | 15 | 11 | 22 | 21 | 59 |
FC70-14 | 15 | 15 | 11 | 23 | 21 | 62.5 |
FC70-16 | 17 | 15 | 11 | 28 | 21 | 66 |
FC70-20 | 21 | 15 | 11 | 30 | 21 | 72 |
FC95-8 | 8.5 | 17 | 13.1 | 25 | 25 | 56 |
FC95-10 | 10.5 | 17 | 13.1 | 25 | 25 | 60 |
FC95-12 | 13 | 17 | 13.1 | 25 | 25 | 62 |
FC95-14 | 15 | 17 | 13.1 | 25 | 25 | 66.5 |
FC95-16 | 17 | 17 | 13.1 | 25 | 25 | 70 |
FC95-20 | 21 | 17 | 13.1 | 30 | 25 | 76 |
FC120-8 | 8.5 | 19 | 14.5 | 28 | 26 | 64 |
FC120-10 | 10.5 | 19 | 14.5 | 28 | 26 | 64 |
FC120-12 | 13 | 19 | 14.5 | 28 | 26 | 66 |
FC120-14 | 15 | 19 | 14.5 | 28 | 26 | 69.5 |
FC120-16 | 17 | 19 | 14.5 | 28 | 26 | 72 |
FC150-10 | 10.5 | 21 | 16.2 | 30 | 30 | 71 |
FC150-12 | 13 | 21 | 16.2 | 30 | 30 | 73 |
FC150-14 | 15 | 21 | 16.2 | 30 | 30 | 73 |
FC150-16 | 17 | 21 | 16.2 | 30 | 30 | 75 |
FC185-12 | 13 | 23 | 18 | 33.5 | 32 | 81 |
FC185-14 | 15 | 23 | 18 | 33.5 | 32 | 85 |
FC185-16 | 17 | 23 | 18 | 33.5 | 32 | 87 |
FC185-20 | 21 | 23 | 18 | 33.5 | 32 | 91 |
FC240-10 | 10.5 | 26 | 20.6 | 38 | 35 | 93.5 |
FC240-12 | 13 | 26 | 20.6 | 38 | 35 | 93.5 |
FC240-14 | 15 | 26 | 20.6 | 38 | 35 | 93.5 |
FC240-16 | 17 | 26 | 20.6 | 38 | 35 | 93.5 |
FC240-20 | 21 | 26 | 20.6 | 38 | 35 | 93.5 |
FC300-12 | 13 | 28 | 23 | 41 | 44 | 96 |
FC300-14 | 15 | 28 | 23 | 41 | 44 | 102 |
FC300-16 | 17 | 28 | 23 | 41 | 44 | 102 |
FC300-20 | 21 | 28 | 23 | 41 | 44 | 106 |
FC400-12 | 13 | 32 | 26 | 46.5 | 44 | 115 |
FC400-14 | 15 | 32 | 26 | 46.5 | 44 | 115 |
FC400-16 | 17 | 32 | 26 | 46.5 | 44 | 115 |
FC400-20 | 21 | 32 | 26 | 46.5 | 44 | 118 |
?
