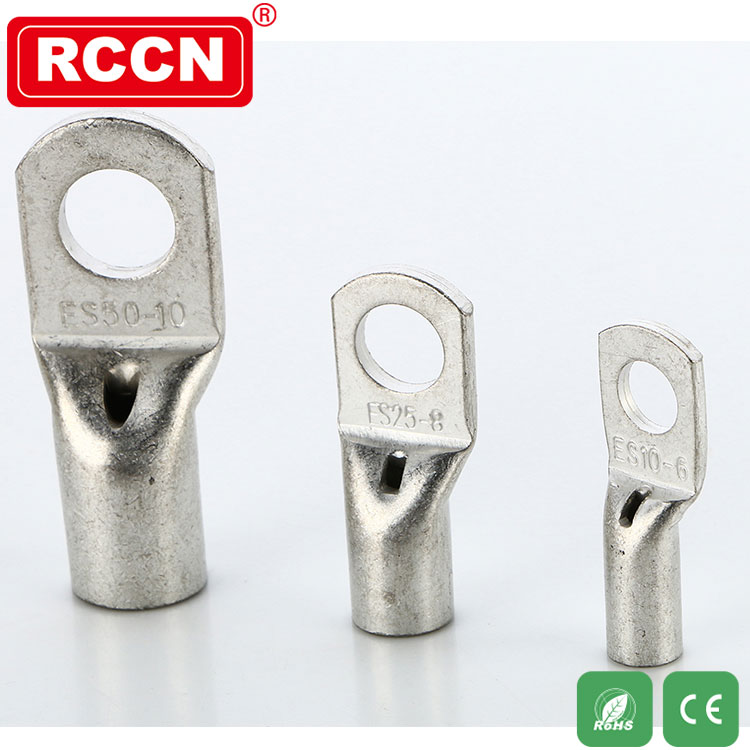

銅管端子 AES

銅管端子,冷壓端子

產品材質:接線端子采用優質紫銅制成,導電性良好
產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套日成端子鉗即可壓緊電線,接線美觀,
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至150度正常使用.
使用方法:將電線剝開外皮,穿入端子后銅管

接線端子冷壓端子銅管端子冷壓線鼻子

產品規格

六折特惠，數量有限。量大價更優!

系列	型號	品號	單位	數量
銅管裸端子	AES4-6(R08)	1300400300070?	PCS	500
銅管裸端子	AES6-6(R08)	1300400300034?	PCS	1988
銅管裸端子	AES6-8(R08)	1300400300035?	PCS	400
銅管裸端子	AES10-5(R08)	1300400300063?	PCS	1150
銅管裸端子	AES10-8(R08)	1300400300005?	PCS	100
銅管裸端子	AES10-10	1300400300046?	PCS	200
銅管裸端子	AES10-12(R08)	1300400300002?	PCS	560
銅管裸端子	AES16-6(R08)	1300400300039?	PCS	14794
銅管裸端子	AES16-10(R08)	1300400300009?	PCS	3000
銅管裸端子	AES16-12(R08)	1300400300011?	PCS	190
銅管裸端子	AES25-6(R08)	1300400300017?	PCS	880
銅管裸端子	AES25-10(R08)	1300400300015?	PCS	1700
銅管裸端子	AES25-12(R08)	1300400300064?	PCS	2020
銅管裸端子	AES35-6(R08)	1300400300068?	PCS	50
銅管裸端子	AES35-10(R08)	1300400300041?	PCS	2006
銅管裸端子	AES35-16(R08)	1300400300025?	PCS	1150
銅管裸端子	AES50-6(R08)	1300400300066?	PCS	587
銅管裸端子	AES50-8(R08)	1300400300048?	PCS	1959
銅管裸端子	AES50-10(R08)	1300400300049?	PCS	1930
銅管裸端子	AES50-12(R08)	1300400300042?	PCS	2598
銅管裸端子	AES50-16(R08)	1300400300032?	PCS	1611
銅管裸端子	AES70-5	1300400300045?	PCS	100
銅管裸端子	AES70-8(R08)	1300400300050?	PCS	685
銅管裸端子	AES70-10(R08)	1300400300051?	PCS	580
銅管裸端子	AES70-12(R08)	1300400300052?	PCS	700
銅管裸端子	AES70-16	1300400300061?	PCS	9
銅管裸端子	AES95-8(R08)	1300400300065?	PCS	450
銅管裸端子	AES95-10(R08)	1300400300053?	PCS	100
銅管裸端子	AES95-12(R08)	1300400300054?	PCS	32
銅管裸端子	AES120-8(R08)	1300400300067?	PCS	100
銅管裸端子	AES120-10(R08)	1300400300055?	PCS	500
銅管裸端子	AES120-12(R08)	1300400300056?	PCS	108
銅管裸端子	AES185-14(R08)	1300400300062?	PCS	30
銅管裸端子	AES240-10(R08)	1300400300057?	PCS	100
銅管裸端子	AES240-12(R08)	1300400300058?	PCS	85

圖片介紹

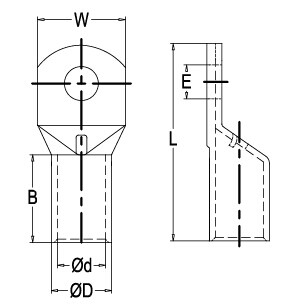

型號 Item No.	E	φD	φd	W	B	L
AES1.5-3	3.2	3.7	1.8	8	6	16
AES1.5-4	4.3	3.7	1.8	8	6	17
AES1.5-5	5.3	3.7	1.8	10	7	19
AES1.5-6	6.5	3.7	1.8	10	7	20
AES2.5-3	3.2	3.9	2.3	8	7	17
AES2.5-4	4.3	3.9	2.3	8	7	18
AES2.5-5	5.3	3.9	2.3	10	7	20
AES2.5-6	6.5	3.9	2.3	10	7	20
AES2.5-8	8.3	4.3	2.3	12.5	7	22.5
AES4-4	4.3	4.7	3	10	8	21
AES4-5	5.3	4.7	3	10	8	22
AES4-6	6.5	4.7	3	10	8	23
AES4-8	8.3	4.7	3	12.5	8	24
AES6-4	4.3	5.9	4	10	9.5	24.6
AES6-5	5.3	5.9	4	10	9.5	24.6
AES6-6	6.5	5.9	4	11	9.5	24.6
AES6-8	8.3	5.9	4	12.5	9.5	27.3
AES6-10	10.3	6.2	4	15	9.5	28.3
AES10-4	4.3	6.6	4.5	11	13	30
AES10-5	5.3	6.6	4.5	11	13	30
AES10-6	6.5	6.6	4.5	11	13	30
AES10-8	8.3	6.6	4.5	12.5	13	30
AES10-10	10.3	6.9	4.5	16	13	34.1
AES10-12	12.7	6.9	4.5	18	12	34.1
AES16-5	5.3	7.5	5.5	11	14	30.7
AES16-6	6.5	7.5	5.5	11	14	30.7
AES16-8	8.3	7.5	5.5	12.5	13	30.7
AES16-10	10.3	7.5	5.5	16	14	35.9
AES16-12	12.7	8.1	5.5	18	13	35.9
AES25-5	5.3	9.1	6.7	13	13	32.2
AES25-6	6.5	9.1	6.7	13	13	32.2
AES25-8	8.3	9.1	6.7	13	13	32.2
AES25-10	10.3	9.1	6.7	16	14	36.9
AES25-12	12.7	9.1	6.7	18	13	36.9
AES25-14	14.8	9.1	6.7	20	13	38.9
AES35-5	5.3	11	8.6	16	16	37.6
AES35-6	6.5	11	8.6	16	16	37.6
AES35-8	8.3	11	8.6	16	16	37.6
AES35-10	10.3	11	8.6	16.7	16	41.5
AES35-12	12.7	11	8.6	18	16	41.5
AES35-14	14.8	11	8.6	20	16	43.5
AES35-16	16.5	11	8.6	23	16	45.5
AES50-5	5.3	12.4	9.5	18	17	41
AES50-6	6.5	12.4	9.5	18	17	41
AES50-8	8.3	12.4	9.5	18	17	41
AES50-10	10.3	12.4	9.5	18	17	44
AES50-12	12.7	12.4	9.5	19	17	44
AES50-14	14.8	12.4	9.5	21	19	52.8
AES50-16	16.5	12.4	9.5	23	19	52.8
AES70-5	5.3	15	12	22	21.5	52.4
AES70-6	6.3	15	12	22	21.5	52.4
AES70-8	8.3	15	12	22	21.5	52.4
AES70-10	10.3	15	12	22	21.5	52.4
AES70-12	12.7	15	12	22	21.5	52.4
AES70-14	14.8	15	12	22	21.5	55
AES70-16	16.5	15	12	24	20	55
AES95-8	8.3	17	13.4	25	22.5	54.7
AES95-10	10.3	17	13.4	25	22.5	54.7
AES95-12	12.7	17	13.4	25	22.5	54.7
AES95-14	14.8	17	13.4	25	22.5	58.3
AES95-16	16.8	17	13.4	25	22.5	58.3
AES120-8	8.3	19	15	27	23	60
AES120-10	10.3	19	15	27	23	60
AES120-12	12.7	19	15	27	23	60
AES120-14	14.8	19	15	27	23	64
AES120-16	16.5	19	15	27	23	64
AES150-10	10.3	21.2	16.5	30	27	67
AES150-12	12.7	21.2	16.5	30	27	67
AES150-14	14.8	21.2	16.5	30	27	67
AES150-16	16.5	21.2	16.5	30	27	71.4
AES150-20	20.9	21.2	16.5	30	27	71.4
AES185-10	10.3	23	19	34	30	73
AES185-12	12.7	23	19	34	30	73
AES185-14	14.8	23	19	34	30	73
AES185-16	16.5	23	19	34	30	76.2
AES185-20	20.9	23	19	34	30	76.2
AES240-10	10.3	26.5	21	38	38	91.4
AES240-12	12.7	26.5	21	38	38	91.4
AES240-14	14.8	26.5	21	38	38	91.4
AES240-16	16.5	26.5	21	38	38	91.4
AES240-20	20.9	26.5	21	38	38	91.4
AES300-12	12.7	30	24.5	43	42	98
AES300-14	14.8	30	24.5	43	42	98
AES300-16	16.5	30	24.5	43	42	98
AES300-20	20.9	30	24.5	43	42	98
AES400-12	12.7	35	27	49	44	104
AES400-14	14.8	35	27	49	44	104
AES400-16	16.5	35	27	49	44	104
AES400-20	20.9	35	27	49	44	104
