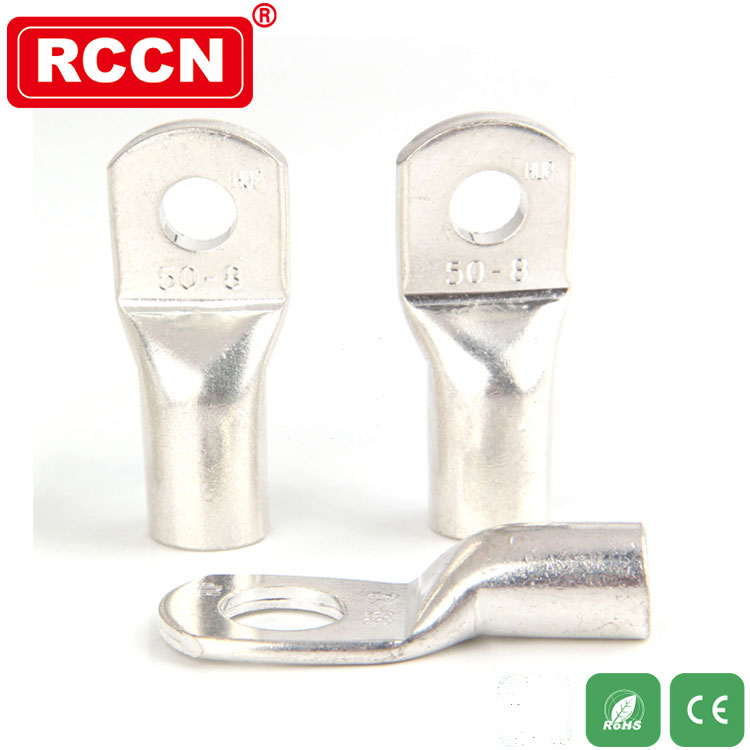

日成銅管端子 HUP

產品材質:接線端子采用優質紫銅制成,導電性良好,耐久性不易老化.
產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套日成端子鉗即可壓緊電線,接線美觀,
國際認證:歐盟RoHS環保認證,歐洲CE認證.
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至150度正常使用.
使用方法:將電線剝開外皮,穿入端子后銅管

型號 Item No.	E	Dφ	dφ	W	B	L
HUP1.5-3	3.2	3.3	1.8	6.5	6	15.3
HUP1.5-4	4.3	3.3	1.8	6.5	6	17
HUP1.5-6	6.5	3.3	1.8	9	6	22.5
HUP2.5-3	3.2	4.2	2.3	7.5	6	15.3
HUP2.5-4	4.3	4.2	2.3	7.5	6	17
HUP2.5-5	5.3	4.2	2.3	8.5	6	18.8
HUP2.5-6	6.5	4.2	2.3	9.5	6	22.5
HUP2.5-8	8.5	4.2	2.3	13	6	27.8
HUP4-5	5.3	5	3	9	8	21.8
HUP4-6	6.5	5	3	10	8	25.5
HUP4-8	8.5	5	3	13	8	30.5
HUP6-5	5.3	6.5	3.5	10	9	27.5
HUP6-6	6.5	6.5	3.5	12	9	27.5
HUP6-8	8.5	6.5	3.5	15	9	33
HUP6-10	10.5	6.5	3.5	17	9	37
HUP6-12	13	6.5	3.5	19	9	41
HUP10-5	5.3	7	4.5	12	10	28.5
HUP10-6	6.5	7	4.5	12	10	28.5
HUP10-8	8.5	7	4.5	15	10	35
HUP10-10	10.5	7	4.5	17	10	39
HUP10-12	13	7	4.5	19	10	42
HUP16-5	5.3	8.5	5.5	12	13	32.5
HUP16-6	6.5	8.5	5.5	12	13	33.3
HUP16-8	8.5	8.5	5.5	15	13	37.5
HUP16-10	10.5	8.5	5.5	17	13	41.5
HUP16-12	13	8.5	5.5	19	13	45
HUP16-14	15	8.5	5.5	21	13	45
HUP25-5	5.3	10	7	14	15	37.5
HUP25-6	6.5	10	7	14	15	37.5
HUP25-8	8.5	10	7	16	15	42
HUP25-10	10.5	10	7	18	15	46
HUP25-12	13	10	7	19	15	48
HUP25-14	15	10	7	21	15	52.5
HUP35-6	6.5	12	8.5	17	17	39.5
HUP35-8	8.5	12	8.5	17	17	44
HUP35-10	10.5	12	8.5	19	17	49
HUP35-12	13	12	8.5	21	17	51
HUP35-14	15	12	8.5	21	17	54.5
HUP35-16	17	12	8.5	26	17	58
HUP50-6	6.5	14	10	20	19	47
HUP50-8	8.5	14	10	20	19	47
HUP50-10	10.5	14	10	20	19	51
HUP50-12	13	14	10	23	19	56
HUP50-14	15	14	10	23	19	59.5
HUP50-16	17	14	10	28	19	62
HUP50-20	21	14	10	30	19	67
HUP70-6	6.5	16.5	12	23.5	21	53
HUP70-8	8.5	16.5	12	23.5	21	53
HUP70-10	10.5	16.5	12	23.5	21	56
HUP70-12	13	16.5	12	23.5	21	59
HUP70-14	15	16.5	12	23.5	21	62.5
HUP70-16	17	16.5	12	28	21	66
HUP70-20	21	16.5	12	30	21	72
HUP95-8	8.5	18	13.5	26	25	60
HUP95-10	10.5	18	13.5	26	25	60
HUP95-12	13	18	13.5	26	25	62
HUP95-14	15	18	13.5	26	25	65.5
HUP95-16	17	18	13.5	28	25	70
HUP95-20	21	18	13.5	36	26	82
HUP120-8	8.5	19.5	15	28	26	65
HUP120-10	10.5	19.5	15	28	26	65
HUP120-12	13	19.5	15	28	26	65
HUP120-14	15	19.5	15	28	26	67
HUP120-16	17	19.5	15	30	26	70
HUP120-20	21	19.5	15	36	28	85
HUP150-8	8.5	21	16.5	30.5	30	70
HUP150-10	10.5	21	16.5	30.5	30	72
HUP150-12	13	21	16.5	30.5	30	72
HUP150-14	15	21	16.5	30.5	30	72
HUP150-16	17	21	16.5	30.5	30	74
HUP150-20	21	21	16.5	36	30	88
HUP185-10	10.5	24	19	35	30	83
HUP185-12	13	24	19	35	30	83
HUP185-14	15	24	19	35	30	83
HUP185-16	17	24	19	35	30	83
HUP185-20	21	24	19	39	30	91
HUP240-10	10.5	26	21	38	35	93.5
HUP240-12	13	26	21	38	35	93.5
HUP240-14	15	26	21	38	35	93.5
HUP240-16	17	26	21	38	35	93.5
HUP240-20	21	26	21	38	35	93.5
HUP300-12	13	29.5	23.5	43	44	111
HUP300-14	15	29.5	23.5	43	44	111
HUP300-16	17	29.5	23.5	43	44	111
HUP300-20	21	29.5	23.5	43	44	111
HUP400-12	13	34	27	49.5	44	114
HUP400-14	15	34	27	49.5	44	114
HUP400-16	17	34	27	49.5	44	114
HUP400-20	21	34	27	49.5	44	114
HUP500-16	17	42	31	59	70	150
HUP500-20	21	42	31	59	70	150
HUP630-16	17	44	34.5	63.5	80	170
HUP630-20	21	44	34.5	63.5	80	170
