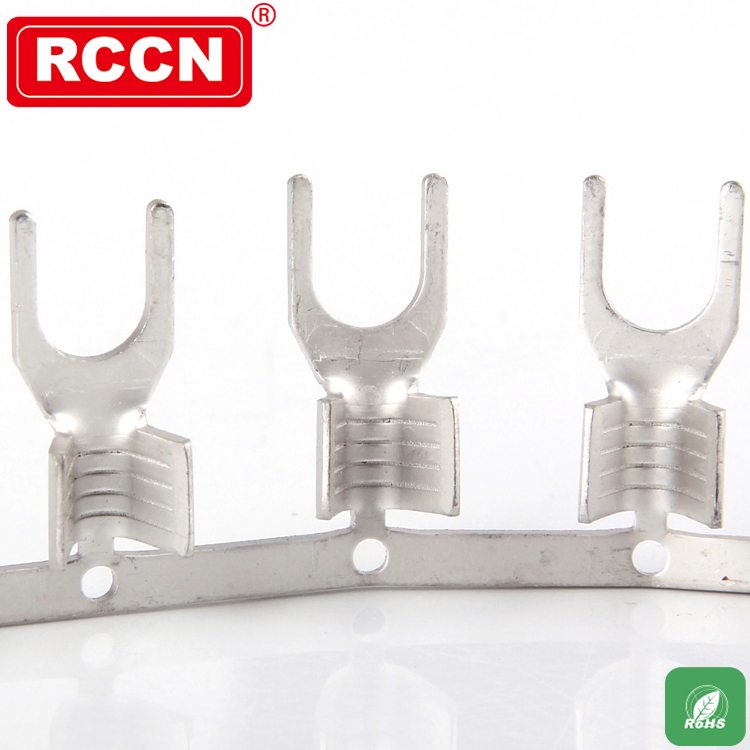

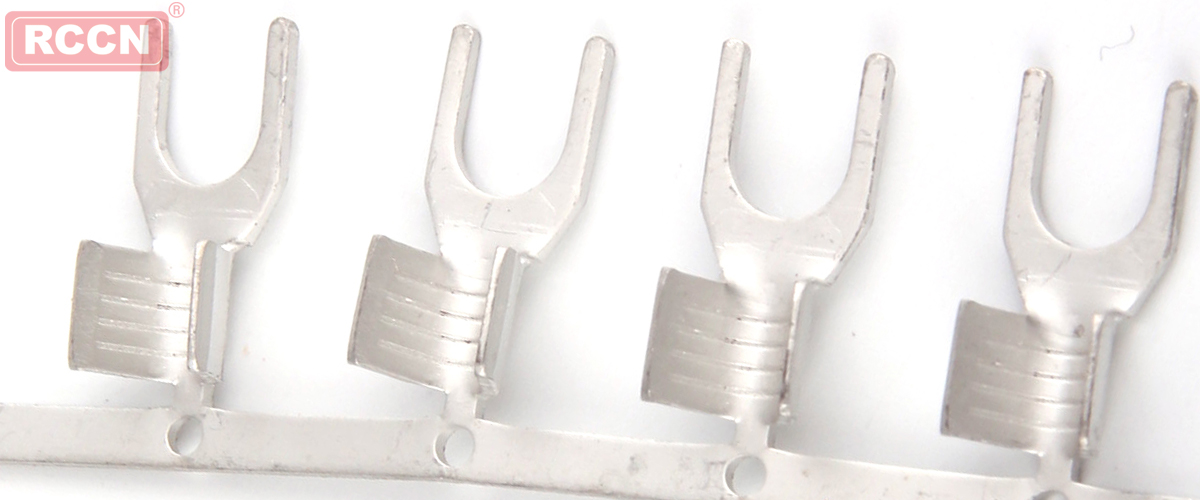

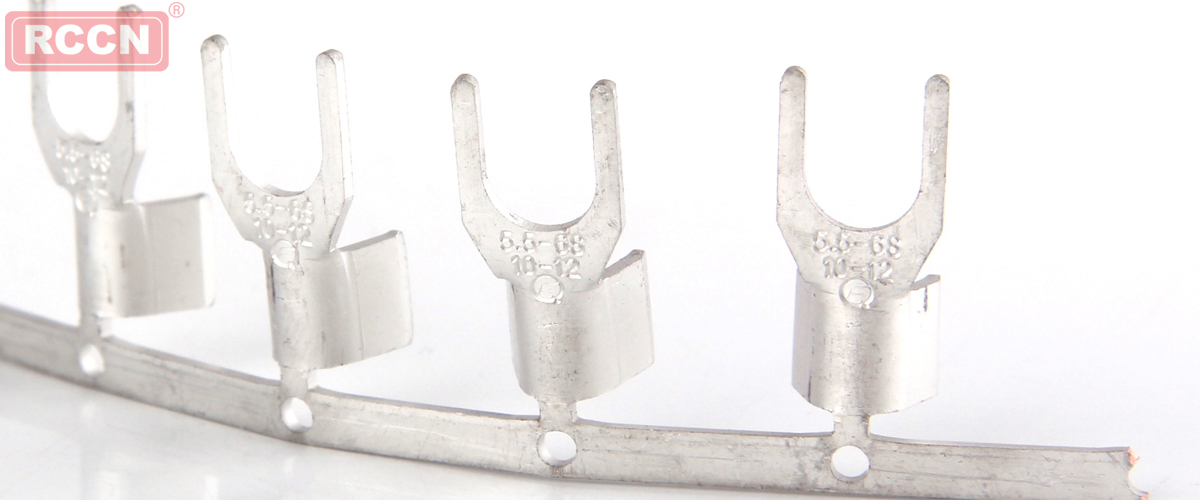

產品材質:接線端子采用優質紫銅制成,導電性良好。
產品特點:紫銅鍍錫,防銹時間大大加長,無鋒利部位。
?國際認證:歐盟RoHS環保認證。
產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至85度正常使用,耐電壓600V
?包裝：5000PCS/卷

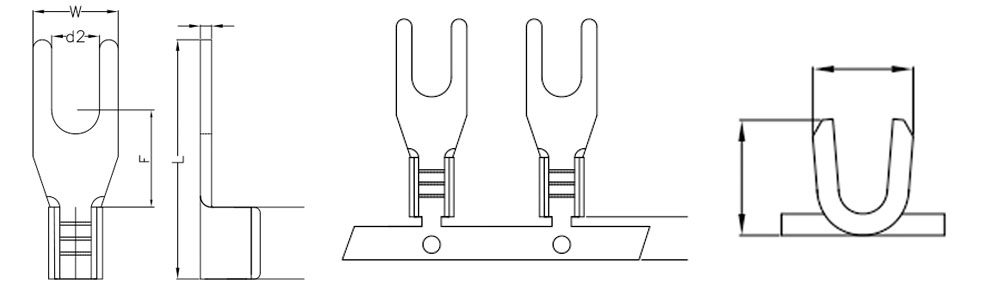

| 型?號 Item?No. | 螺栓規格 | 螺栓直徑 | 尺寸?DIMENSION（mm） | ||
| USA?screw | D2 | W | F | L | |
| Y1.25-3連帶 | #4 | 3.2 | 5.7 | 6.5 | 16 |
| YS1.25-3.5連帶 | #6 | 3.7 | 5.7 | 6.5 | 16 |
| YL1.25-3.5連帶 | #6 | 3.7 | 6.6 | 6.5 | 16 |
| YS1.25-4連帶 | #8 | 4.3 | 8 | 6.5 | 16 |
| YM1.25-4連帶 | #8 | 4.3 | 6.6 | 6.5 | 16 |
| YL1.25-4連帶 | #8 | 4.3 | 8 | 6.5 | 16 |
| YS1.25-5連帶 | #10 | 5.3 | 8 | 6.5 | 16 |
| YL1.25-5連帶 | #10 | 5.3 | 9.8 | 6.5 | 16 |
| YS1.25-6連帶 | ?1/4 | 6.4 | 9.8 | 6.5 | 16 |
| YL1.25-6連帶 | ?1/4 | 6.4 | 11.6 | 11 | 22 |
| Y2-3連帶 | #4 | 3.2 | 5.7 | 6.5 | 16 |
| YS2-3.5連帶 | #6 | 3.7 | 5.7 | 6.5 | 16 |
| YL2-3.5連帶 | #6 | 3.7 | 6 | 6.5 | 16 |
| YS2-4連帶 | #8 | 4.3 | 6.4 | 6.5 | 16 |
| YM2-4連帶 | #8 | 4.3 | 7.2 | 6.5 | 16 |
| YL2-4連帶 | #8 | 4.3 | 8.1 | 6.5 | 16 |
| YS2-5連帶 | #10 | 5.3 | 8.1 | 6.5 | 16 |
| YL2-5連帶 | #10 | 5.3 | 9.5 | 6.5 | 16 |
| YS2-6連帶 | ?1/4 | 6.4 | 9.5 | 6.5 | 16 |
| YL2-6連帶 | ?1/4 | 6.4 | 12 | 11 | 22 |
| Y3.5-3連帶 | #4 | 3.2 | 5.7 | 7 | 18.3 |
| YS3.5-4連帶 | #8 | 4.3 | 8 | 7 | 18.3 |
| Y3.5-4連帶 | #10 | 5.3 | 8 | 7 | 18.3 |
| Y3.5-5連帶 | ?1/4 | 6.4 | 12 | 12.1 | 21.5 |
| Y3.5-6連帶 | #6 | 3.7 | 7.2 | 7.5 | 18.2 |
| YS5.5-4連帶 | #8 | 4.3 | 8.3 | 7.5 | 19.5 |
| YL5.5-4連帶 | #8 | 4.3 | 9 | 7.5 | 19.5 |
| Y5.5-5連帶 | #10 | 5.3 | 9 | 7.5 | 19.5 |
| YS5.5-6連帶 | ?1/4 | 6.4 | 9 | 7.5 | 19.5 |
| YL5.5-6連帶 | ?1/4 | 6.4 | 12 | 12 | 25.5 |
| Y5.5-8連帶 | ??5/16 | 8.4 | 14 | 11.5 | 24.5 |
