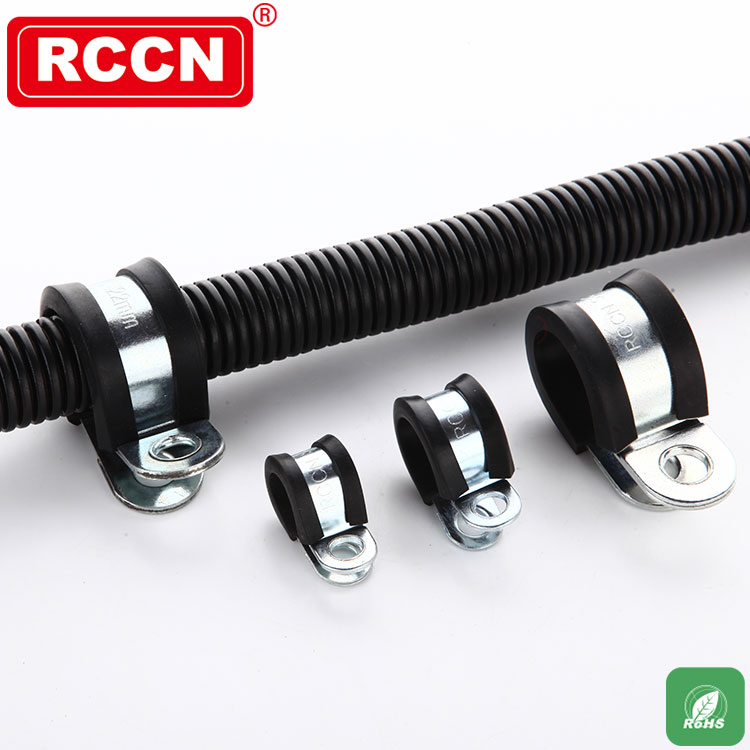

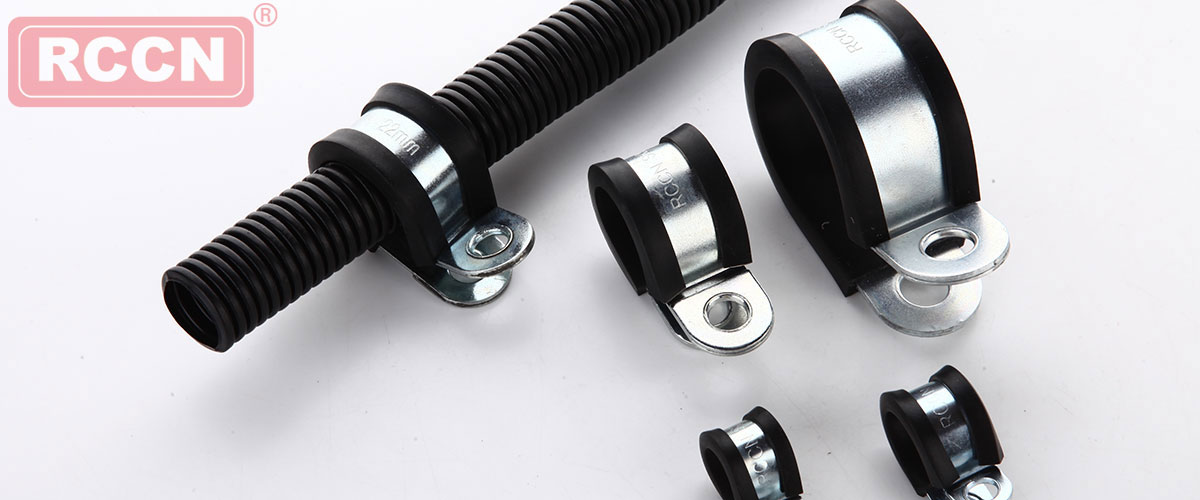

日成軟管緊固夾 SKM

軟管緊固夾,緊固型管夾

產品材質:采用冷軋鋼鍍鋅包附耐老化橡膠
工作溫度:-40°C至150°C。
產品特性:軟管或線纜等固定。

說明:本品特適合戶外,高底溫環境使用。采用加厚型電鍍和耐老化橡膠包,性能優

可根據要求開發其它規格,有起訂量要求。

軟管緊固夾緊固型管夾緊固夾緊固夾價格

產品規格

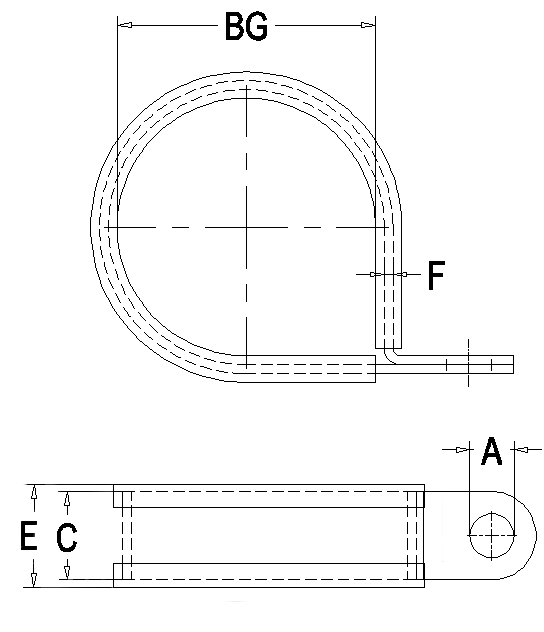

型號 Item No.	日成軟管型號 RCCN Conduit? item no	軟管外徑 Conduit outer dia AD	螺絲孔 Thread hole A	寬度 Width E/C	厚度 Thickness F
冷軋鋼鍍鋅
SKM/M4
SKM BG-07(M4)	BG-07	10mm	M4	14/9	0.5
SKM BG-10(M4)	BG-10	13mm	M4	14/9	0.5
SKM BG-12(M4)	BG-12	15.8mm	M4	14/9	0.5
SKM BG-15(M4)	BG-15	18.5mm	M4	14/9	0.5
SKM BG-17(M4)	BG-17	21.2mm	M4	14/9	0.5
SKM BG-20(M4)	BG-20	25mm	M4	14/9	0.5
SKM BG-23(M4	BG-23	28.5mm	M4	14/9	0.5
SKM BG-25(M4)	BG-25	30.0mm	M4	14/9	0.5
SKM BG-29(M4)	BG-29	34.5mm	M4	14/9	0.5
SKM BG-36(M4)	BG-36	42.5mm	M4	14/9	0.5
SKM BG-48(M4)	BG-48	54.5mm	M4	14/9	0.5
SKM/M6?
SKM BG-07(M6)	BG-07	10mm	M6	15/12	0.5
SKM BG-10(M6)	BG-10	13mm	M6	15/12	0.5
SKM BG-12(M6)	BG-12	15.8mm	M6	15/12	0.5
SKM BG-15(M6)	BG-15	18.5mm	M6	15/12	0.5
SKM BG-17(M6)	BG-17	21.2mm	M6	15/12	0.5
SKM BG-20(M6)	BG-20	25mm	M6	15/12	0.5
SKM BG-23(M6)	BG-23	28.5mm	M6	15/12	0.5
SKM BG-25(M6)	BG-25	30.0mm	M6	15/12	0.5
SKM BG-29(M6)	BG-29	34.5mm	M6	15/12	0.5
SKM BG-36(M6)	BG-36	42.5mm	M6	15/12	0.5
SKM BG-48(M6)	BG-48	54.5mm	M6	15/12	0.5
SKM/M6D?
SKM BG-07(M6D)	BG-07	10mm	M6	24.5/20	1.0
SKM BG-10(M6D)	BG-10	13mm	M6	24.5/20	1.0
SKM BG-12(M6D)	BG-12	15.8mm	M6	24.5/20	1.0
SKM BG-15(M6D)	BG-15	18.5mm	M6	24.5/20	1.0
SKM BG-17(M6D)	BG-17	21.2mm	M6	24.5/20	1.0
SKM BG-20(M6D)	BG-20	25mm	M6	24.5/20	1.0
SKM? BG-23(M6D)	BG-23	28.5mm	M6	24.5/20	1.0
SKM BG-25(M6D)	BG-25	30.0mm	M6	24.5/20	1.0
SKM BG-29(M6D)	BG-29	34.5mm	M6	24.5/20	1.0
SKM BG-36(M6D)	BG-36	42.5mm	M6	24.5/20	1.0
SKM BG-48(M6D)	BG-48	54.5mm	M6	24.5/20	1.0
SKM/M8?
SKM BG-07(M8)	BG-0	10mm	M8	24.5/20	1.0
SKM BG-10(M8)	BG-10	13mm	M8	24.5/20	1.0
SKM BG-12(M8)	BG-12	15.8mm	M8	24.5/20	1.0
SKM BG-15(M8)	BG-15	18.5mm	M8	24.5/20	1.0
SKM BG-17(M8)	BG-17	21.2mm	M8	24.5/20	1.0
SKM BG-20(M8)	BG-20	25mm	M8	24.5/20	1.0
SKM BG-23(M8)	BG-23	28.5mm	M8	24.5/20	1.0
SKM BG-25(M8)	BG-25	30.0mm	M8	24.5/20	1.0
SKM BG-29(M8)	BG-29	34.5mm	M8	24.5/20	1.0
SKM BG-36(M8)	BG-36	42.5mm	M8	24.5/20	1.0
SKM BG-48(M8)	BG-48	54.5mm	M8	24.5/20	1.0
SKM/M10?
SKM BG-07(M10)	BG-07	10mm	M10	30/25	1.0
SKM BG-10(M10)	BG-10	13mm	M10	30/25	1.0
SKM BG-12(M10)	BG-12	15.8mm	M10	30/25	1.0
SKM BG-15(M10)	BG-15	18.5mm	M10	30/25	1.0
SKM BG-17(M10)	BG-17	21.2mm	M10	30/25	1.0
SKM BG-20(M10)	BG-20	25mm	M10	30/25	1.0
SKM BG-23(M10)	BG-23	28.5mm	M10	30/25	1.0
SKM BG-25(M10)	BG-25	30.0mm	M10	30/25	1.0
SKM BG-29(M10)	BG-29	34.5mm	M10	30/25	1.0
SKM BG-36(M10)	BG-36	42.5mm	M10	30/25	1.0
SKM BG-48(M10)	BG-48	54.5mm	M10	30/25	1.0
SKM BG-70(M10)	BG-67	70.0mm	M10	30/25	1.0
304材質
SKM/M4
SKM BG-07(M4)/304	BG-07	10mm	M4	14/9	0.5
SKM BG-10(M4)/304	BG-10	13mm	M4	14/9	0.5
SKM BG-12(M4)/304	BG-12	15.8mm	M4	14/9	0.5
SKM BG-15(M4)/304	BG-15	18.5mm	M4	14/9	0.5
SKM BG-17(M4)/304	BG-17	21.2mm	M4	14/9	0.5
SKM BG-20(M4)/304	BG-20	25mm	M4	14/9	0.5
SKM BG-23(M4/304	BG-23	28.5mm	M4	14/9	0.5
SKM BG-25(M4)/304	BG-25	30.0mm	M4	14/9	0.5
SKM BG-29(M4)/304	BG-29	34.5mm	M4	14/9	0.5
SKM BG-36(M4)/304	BG-36	42.5mm	M4	14/9	0.5
SKM BG-48(M4)/304	BG-48	54.5mm	M4	14/9	0.5
SKM/M6
SKM BG-07(M6)/304	BG-07	10mm	M6	15/12	0.5
SKM BG-10(M6)/304	BG-10	13mm	M6	15/12	0.5
SKM BG-12(M6)/304	BG-12	15.8mm	M6	15/12	0.5
SKM BG-15(M6)/304	BG-15	18.5mm	M6	15/12	0.5
SKM BG-17(M6)/304	BG-17	21.2mm	M6	15/12	0.5
SKM BG-20(M6)/304	BG-20	25mm	M6	15/12	0.5
SKM BG-23(M6)/304	BG-23	28.5mm	M6	15/12	0.5
SKM BG-25(M6)/304	BG-25	30.0mm	M6	15/12	0.5
SKM BG-29(M6)/304	BG-29	34.5mm	M6	15/12	0.5
SKM BG-36(M6)/304	BG-36	42.5mm	M6	15/12	0.5
SKM BG-48(M6)/304	BG-48	54.5mm	M6	15/12	0.5
SKM/M6D?
SKM BG-07(M6D)/304	BG-07	10mm	M6	24.5/20	1.0
SKM BG-10(M6D)/304	BG-10	13mm	M6	24.5/20	1.0
SKM BG-12(M6D)/304	BG-12	15.8mm	M6	24.5/20	1.0
SKM BG-15(M6D)/304	BG-15	18.5mm	M6	24.5/20	1.0
SKM BG-17(M6D)/304	BG-17	21.2mm	M6	24.5/20	1.0
SKM BG-20(M6D)/304	BG-20	25mm	M6	24.5/20	1.0
SKM?BG-23(M6D)/304	BG-23	28.5mm	M6	24.5/20	1.0
SKM BG-25(M6D)/304	BG-25	30.0mm	M6	24.5/20	1.0
SKM BG-29(M6D)/304	BG-29	34.5mm	M6	24.5/20	1.0
SKM BG-36(M6D)/304	BG-36	42.5mm	M6	24.5/20	1.0
SKM BG-48(M6D)/304	BG-48	54.5mm	M6	24.5/20	1.0
SKM/M8?
SKM BG-07(M8)/304	BG-0	10mm	M8	24.5/20	1.0
SKM BG-10(M8)/304	BG-10	13mm	M8	24.5/20	1.0
SKM BG-12(M8)/304	BG-12	15.8mm	M8	24.5/20	1.0
SKM BG-15(M8)/304	BG-15	18.5mm	M8	24.5/20	1.0
SKM BG-17(M8)/304	BG-17	21.2mm	M8	24.5/20	1.0
SKM BG-20(M8)/304	BG-20	25mm	M8	24.5/20	1.0
SKM BG-23(M8)/304	BG-23	28.5mm	M8	24.5/20	1.0
SKM BG-25(M8)/304	BG-25	30.0mm	M8	24.5/20	1.0
SKM BG-29(M8)/304	BG-29	34.5mm	M8	24.5/20	1.0
SKM BG-36(M8)/304	BG-36	42.5mm	M8	24.5/20	1.0
SKM BG-48(M8)/304	BG-48	54.5mm	M8	24.5/20	1.0
SKM/M10?
SKM BG-07(M10)/304	BG-07	10mm	M10	30/25	1.0
SKM BG-10(M10)/304	BG-10	13mm	M10	30/25	1.0
SKM BG-12(M10)/304	BG-12	15.8mm	M10	30/25	1.0
SKM BG-15(M10)/304	BG-15	18.5mm	M10	30/25	1.0
SKM BG-17(M10)/304	BG-17	21.2mm	M10	30/25	1.0
SKM BG-20(M10)/304	BG-20	25mm	M10	30/25	1.0
SKM BG-23(M10)/304	BG-23	28.5mm	M10	30/25	1.0
SKM BG-25(M10)/304	BG-25	30.0mm	M10	30/25	1.0
SKM BG-29(M10)/304	BG-29	34.5mm	M10	30/25	1.0
SKM BG-36(M10)/304	BG-36	42.5mm	M10	30/25	1.0
SKM BG-48(M10)/304	BG-48	54.5mm	M10	30/25	1.0
SKM BG-70(M10)/304	BG-67	70.0mm	M10	30/25	1.0
