日成抗紫外線扎帶 GUV

抗紫外線扎帶,扎帶,尼龍扎帶

材? 質:采用進口耐候尼龍66(NYLON66)制成,
防火等級:94V-2,絕緣性良好, 耐久性不易老化折斷.
特? 點:耐候性原料達到抗紫外線效果,特適用于戶外使用.
顏? 色:黑色.
認? 證:美國UL:E306674,歐盟CE,歐盟RoHS環保,REACH.
特? 性:品質優良,捆扎后靜態-20℃耐熱至85℃不易斷裂松開.
使用方法:將扎帶末端穿過帶孔一拉,即可牢牢扣住.

抗紫外線扎帶扎帶尼龍扎帶

產品規格

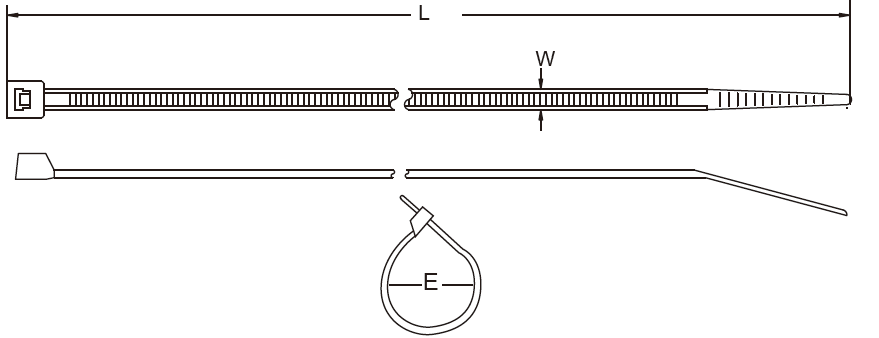

型號 Item No. 黑色 Black UV		長度 Length L		寬度 Width W		捆扎范圍 bundle diameter E		承受拉力 Tensile Strength
100 pcs	1000pcs	mm	inch	mm	inch	mm	inch	kgs	lbs
G80MUV	G80MUV/K	80	3.15	2.4	0.09	15	0.59	8.0	18
G90MUV	G90MUV/K	90	3.54	2.4	0.09	16	0.63	8.0	18
G100MUV	G100MUV/K	100	3.94	2.5	0.10	22	0.87	8.1	18
G120MUV	G120MUV/K	120	4.72	2.5	0.10	30	1.18	8.1	18
G140MUV	G140MUV/K	140	5.51	2.5	0.10	33	1.30	8.1	18
G150MUV	G150MUV/K	150	5.91	2.5	0.10	35	1.38	8.1	18
G160MUV	G160MUV/K	160	6.30	2.5	0.10	38	1.50	8.1	18
G200MUV	G200MUV/K	200	7.87	2.5	0.10	53	2.09	8.1	18
G250MUV	G250MUV/K	250	9.84	2.8	0.11	65	2.56	14	31
G300MUV	G300MUV/K	300	11.81	2.8	0.11	76	2.99	14	31
G120IUV	G120IUV/K	120	4.72	3.6	0.14	30	1.18	18.2	40
G140IUV	G140IUV/K	140	5.51	3.6	0.14	33	1.30	18.2	40
G150IUV	G150IUV/K	150	5.91	3.6	0.14	35	1.38	18.2	40
G180IUV	G180IUV/K	180	7.09	3.6	0.14	44	1.73	18.2	40
G200IUV	G200IUV/K	200	7.87	3.6	0.14	52	2.05	18.2	40
G250IUV	G250IUV/K	250	9.84	3.6	0.14	65	2.56	18.2	40
G300IUV	G300IUV/K	300	11.81	3.6	0.14	76	2.99	18.2	40
G370IUV	G370IUV/K	370	14.57	3.6	0.14	102	4.02	18.2	40
G120STUV	G120STUV/K	120	4.72	4.8	0.19	24	0.94	22.2	50
G150STUV	G150STUV/K	150	5.91	4.8	0.19	35	1.38	22.2	50
G160STUV	G160STUV/K	160	6.30	4.8	0.19	38	1.50	22.2	50
G190STUV	G190STUV/K	190	7.48	4.8	0.19	46	1.81	22.2	50
G200STUV	G200STUV/K	200	7.87	4.8	0.19	50	1.97	22.2	50
G215STUV	G215STUV/K	215	8.46	4.8	0.19	53	2.09	22.2	50
G250STUV	G250STUV/K	250	9.84	4.8	0.19	60	2.36	22.2	50
G265STUV	G265STUV/K	265	10.43	4.8	0.19	65	2.56	22.2	50
G280STUV	G280STUV/K	280	11.02	4.8	0.19	70	2.76	22.2	50
G300STUV	G300STUV/K	300	11.81	4.8	0.19	76	2.99	22.2	50
G370STUV	G370STUV/K	370	14.57	4.8	0.19	102	4.02	22.2	50
G390STUV	G390STUV/K	390	15.35	4.8	0.19	105	4.13	22.2	50
G430STUV?	?	430	16.9	4.8	0.19	110	4.33	22.2	50
G450STUV	?	450	17.72	4.8	0.19	116	4.57	22.2	50
G530STUV	?	530	20.87	4.8	0.19	140	5.51	22.2	50
G550STUV	?	550	21.65	4.8	0.19	145	5.71	22.2	50
G635STUV	?	635	25.00	4.8	0.19	190	7.48	22.2	50
G685STUV	?	685	26.97	4.8	0.19	205	8.07	22.2	50
G730STUV	?	730	28.94	4.8	0.19	224	8.82	22.2	50
G830STUV	?	830	32.68	4.8	0.19	254	10.00	22.2	50
G920STUV	?	920	36.42	4.8	0.19	263	10.35	22.2	50

? ??

型號 Item No.		長度 Length L		寬度 Width W		捆扎范圍 bundle diameter E		承受拉力 Tensile Strength
?	黑色 Black 100PCS	mm	inch	mm	inch	mm	inch	kgs	lbs
?	G150HDUV	150	5.91	7.6	0.30	33	1.30	54.4	120
?	G200HDUV	200	7.87	7.6	0.30	50	1.97	54.4	120
?	G240HDUV	240	9.45	7.6	0.30	63	2.48	54.4	120
?	G250HDUV	250	9.84	7.6	0.30	65	2.56	54.4	120
?	G300HDUV	300	11.02	7.6	0.30	76	2.99	54.4	120
?	G370HDUV	370	14.49	7.6	0.30	102	4.02	54.4	120
NEW	G380HDSUV	380	14.94	7.6	0.30	110	4.32	54.4	120
?	G430HDSUV	430	16.93	7.6	0.30	125	4.92	54.5	120
?	G450HDSUV	450	17.72	7.6	0.30	132	5.20	54.5	120
NEW	G500HDSUV	500	19.66	7.6	0.3	147	5.78	54.4	120
?	G530HDSUV	530	20.87	7.6	0.30	140	5.51	54.5	120
?	G610HDSUV	610	24.02	7.6	0.30	180	7.07	54.5	120
?	G430HDUV	430	16.93	9.0	0.35	110	4.33	79.4	175
?	G450HDUV	450	17.72	9.0	0.35	120	4.72	79.4	175
?	G530HDUV	530	20.87	9.0	0.35	140	5.51	79.4	175
?	G610HDUV	610	24.02	9.0	0.35	187	7.00	79.4	175
?	G710HDUV	710	27.95	9.0	0.35	190	7.48	79.4	175
?	G780HDUV	780	30.55	9.0	0.35	228	8.98	79.4	175
?	G830HDUV	830	32.09	9.0	0.35	239	9.41	79.4	175
?	G920HDUV	920	35.91	9.0	0.35	263	10.35	79.4	175
?	G1020HDUV	1020	40.16	9.0	0.35	295	11.61	79.4	175
?	G1070HDUV	1070	42.00	9.0	0.35	320	12.60	79.4	175
?	G1220HDUV	1220	48.00	9.0	0.35	365	14.37	79.4	175
?	G1530HDUV	1530	60.23	9.0	0.35	460	18.15	79.4	175
