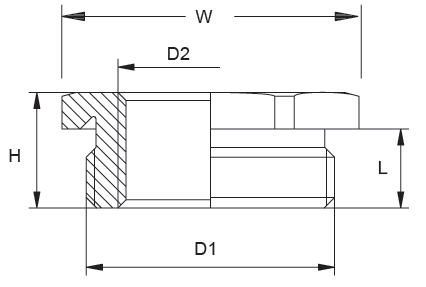

| 型號Item No. | 外螺紋 D1 ? | 內(nèi)螺紋 D2 ? | 螺紋長度 L ? | 高度 H ? | 寬度 W ? | 包裝 Std.Pkg. pcs |
REM-M | ||||||
REM-M16/M12 | M16*1.5 | M12*1.5 | 6.0 | 8.5 | 18 | 50 |
REM-M20/M16 | M20*1.5 | M16*1.5 | 6.5 | 9.0 | 24 | 50 |
REM-M25/M20 | M25*1.5 | M20*1.5 | 7.5 | 10.0 | 30 | 50 |
REM-M32/M25 | M32*1.5 | M25*1.5 | 8.0 | 11.5 | 39 | 25 |
REM-M40/M32 | M40*1.5 | M32*1.5 | 9.0 | 12.5 | 43 | 25 |
REM-M50/M40 | M50*1.5 | M40*1.5 | 10.0 | 14.0 | 57 | 10 |
REM-M63/M50 | M63*1.5 | M50*1.5 | 10.0 | 14.0 | 64 | 5 |
REM-P | ||||||
REM-PG9/PG7 | PG9 | PG7 | 6.0 | 8.5 | 17 | 50 |
REM-PG11/PG9 | PG11 | PG9 | 6.5 | 8.5 | 20 | 50 |
REM-PG13.5/PG11 | PG13.5 | PG11 | 6.5 | 9.0 | 22 | 50 |
REM-PG16/PG13.5 | PG16 | PG13.5 | 6.5 | 9.5 | 24 | 50 |
REM-PG21/PG16 | PG21 | PG16 | 7.5 | 10.0 | 30 | 25 |
REM-PG29/PG21 | PG29 | PG21 | 8.0 | 11.5 | 39 | 25 |
REM-PG36/PG29 | PG36 | PG29 | 9.0 | 12.5 | 50 | 25 |
REM-PG42/PG36 | PG42 | PG36 | 10.0 | 14 | 57 | 10 |
REM-PG48/PG42 | PG48 | PG42 | 10.0 | 14 | 64 | 5 |
REM-N | ||||||
REM-NPT12/NPT38 | NPT1/2" | NPT3/8" | 6.5 | 9.0 | 24 | 50 |
REM-NPT34/NPT12 | NPT3/4" | NPT1/2" | 7.5 | 10.0 | 30 | 50 |
REM-NPT1/NPT34 | NPT 1" | NTP3/4" | 8.0 | 11.5 | 39 | 25 |
REM-NPT1-1/4/NPT1 | NPT1 1/4" | NPT 1" | 9.0 | 12.5 | 50 | 10 |
?
