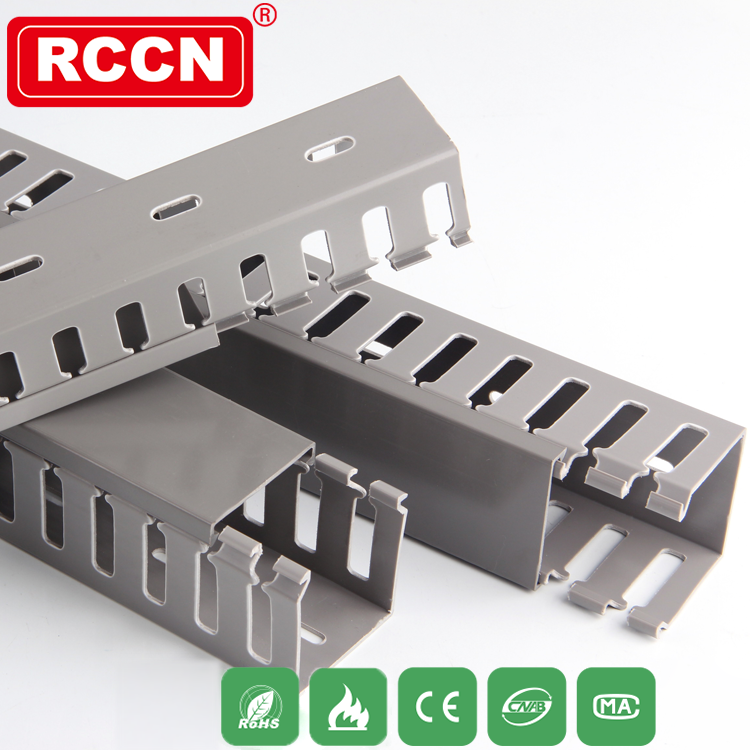

低煙無鹵線槽 VDRF-HF

特點：耐高溫110度線槽

產品材質:采用無鹵素硬質料制成,環保無污染,不含鉛等有毒物。

產品認證:原料UL.歐洲CE,歐洲環保RoHS,REACH。
防火等級:UL94V-0,低煙無鹵,遇火不燃燒,防火性及絕緣性特佳。
產品構造:由槽底及槽蓋組成。
顏 ? ? ?色:灰色.乳白色.藍色,淺灰色
工作溫度 :靜態-40°C持續高溫至110°C。
*無鹵原料采用PC+ABS制成。
產品用途：半導體制造,造船,核能發電廠，石油平臺，電梯，機車及地鐵，風能發電平臺，溫度及環境惡劣等行業。
更多選擇:可按需求生產定制其它長度.
無鹵線槽以槽蓋槽底組合后外部寬高為準
表格如沒有你所需要的規格，我司可以開發設計供應！

無鹵耐高溫線槽低煙無鹵線槽無鹵線槽線槽價格線槽

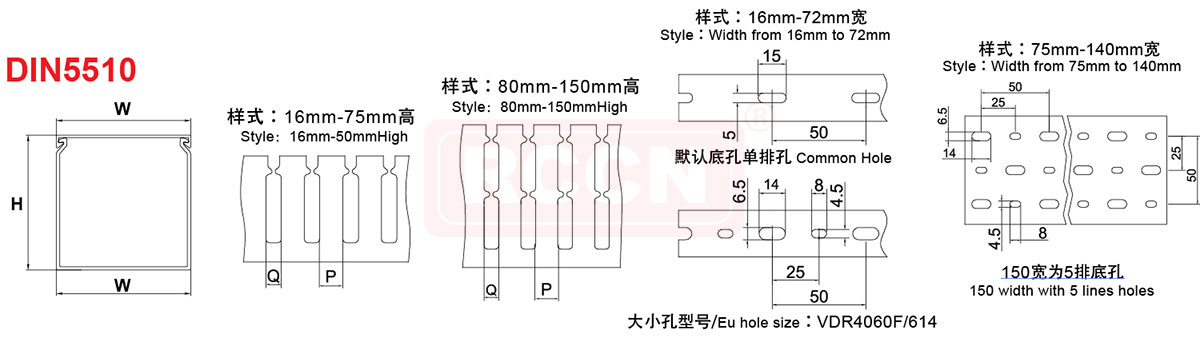

產品規格

型號Item No.				寬高 WH	孔寬 Q	齒寬 P	裝箱 /M
灰色Gray	乳白色White	藍色Blue	黑色Black	寬高 WH	孔寬 Q	齒寬 P	裝箱 /M
VDR1616F/HF	VDR1616FW/HF	VDR1616FE/HF	VDR1616FB/HF	16*16	8	10	300M
VDR2516F/HF	VDR2516FW/HF	VDR2516FE/HF	VDR2516FB/HF	25*16	8	10	260M
VDR1520F/HF	VDR1520FW/HF	VDR1520FE/HF	VDR1520FB/HF	15*20	8.5	12	260M
VDR2020F/HF	VDR2020FW/HF	VDR2020FE/HF	VDR2020FB/HF	20*20	8.5	12	240M
VDR4020F/HF	VDR4020FW/HF	VDR4020FE/HF	VDR4020FB/HF	40*20	8	12	140M
VDR1525F/HF	VDR1525FW/HF	VDR1525FE/HF	VDR1525FB/HF	15*25	8	12	260M
VDR2025F/HF	VDR2025FW/HF	VDR2025FE/HF	VDR2025FB/HF	20*25	8	12	200M
VDR2525F/HF	VDR2525FW/HF	VDR2525FE/HF	VDR2525FB/HF	25*25	8	12	200M
VDR3025F/HF	VDR3025FW/HF	VDR3025FE/HF	VDR3025FB/HF	30*25	8	12	160M
VDR4025F/HF	VDR4025FW/HF	VDR4025FE/HF	VDR4025FB/HF	40*25	8	12	100M
VDR5025F/HF	VDR5025FW/HF	VDR5025EF/HF	VDR5025FB/HF	50*25	8	12	100M
VDR1530F/HF	VDR1530FW/HF	VDR1530FE/HF	VDR1530FB/HF	15*30	8	12	180M
VDR2030F/HF	VDR2030FW/HF	VDR2030FE/HF	VDR2030FB/HF	20*30	8	12	130M
VDR2530F/HF	VDR2530FW/HF	VDR2530FE/HF	VDR2530FB/HF	25*30	8	12	130M
VDR3030F/HF	VDR3030FW/HF	VDR3030FE/HF	VDR3030FB/HF	30*30	8	12	140M
VDR4030F/HF	VDR4030FW/HF	VDR4030FE/HF	VDR4030FB/HF	40*30	8	12	100M
VDR5030F/HF	VDR5030FW/HF	VDR5030FE/HF	VDR5030FB/HF	50*30	8	12	80M
VDR6030F/HF	VDR6030FW/HF	VDR6030FE/HF	VDR6030FB/HF	60*30	8	12	60M
VDR2233F/HF	VDR2233FW/HF	VDR2233FE/HF	VDR2233FB/HF	22*33	8	12	160M
VDR3333F/HF	VDR3333FW/HF	VDR3333FE/HF	VDR3333FB/HF	33*33	8	12	160M
VDR2035F/HF	VDR2035FW/HF	VDR2035FE/HF	VDR2035FB/HF	20*35	8	12	100M
VDR3535F/HF	VDR3535FW/HF	VDR3535FE/HF	VDR3535FB/HF	35*35	8	12	112M
VDR5035F/HF	VDR5035FW/HF	VDR5035FE/HF	VDR5035FB/HF	50*35	8	12	88M
VDR2040F/HF	VDR2040FW/HF	VDR2040FE/HF	VDR2040FB/HF	20*40	8	12	110M
VDR2540F/HF	VDR2540FW/HF	VDR2540FE/HF	VDR2540FB/HF	25*40	8	12	112M
VDR3540F/HF	VDR3540FW/HF	VDR3540FE/HF	VDR3540FB/HF	35*40	8	12	100M
VDR4040F/HF	VDR4040FW/HF	VDR4040FE/HF	VDR4040FB/HF	40*40	8	12	100M
VDR6040F/HF	VDR6040FW/HF	VDR6040FE/HF	VDR6040FB/HF	60*40	8	12	68M
VDR8040F/HF	VDR8040FW/HF	VDR8040FE/HF	VDR8040FB/HF	80*40	8	12	48M
VDR10040F/HF	VDR10040FW/HF	VDR10040FE/HF	VDR10040FB/HF	100*40	8	12	32M
VDR12040F/HF	VDR12040FW/HF	VDR12040FE/HF	VDR12040FB/HF	100*40	8	12	/
VDR2545F/HF	VDR2545FW/HF	VDR2545FE/HF	VDR2545FB/HF	25*45	8	12	104M
VDR3345F/HF	VDR3345FW/HF	VDR3345FE/HF	VDR3345FB/HF	33*45	8	12	108M
VDR4545F/HF	VDR4545FW/HF	VDR4545FE/HF	VDR4545FB/HF	45*45	8	12	72M
VDR6545F/HF	VDR6545FW/HF	VDR6545FE/HF	VDR6545FB/HF	65*45	8	12	56M
VDR2050F/HF	VDR2050FW/HF	VDR2050FE/HF	VDR2050FB/HF	20*50	8	12	100M
VDR2550F/HF	VDR2550FW/HF	VDR2550FE/HF	VDR2550FB/HF	25*50	8	12	100M
VDR3050F/HF	VDR3050FW/HF	VDR3050FE/HF	VDR3050FB/HF	30*50	8	12	84M
VDR3550F/HF	VDR3550FW/HF	VDR3550FE/HF	VDR3550FB/HF	35*50	8	12	80M
VDR4050F/HF	VDR4050FW/HF	VDR4050FE/HF	VDR4050FB/HF	40*50	8	12	68M
VDR4550F/HF	VDR4550FW/HF	VDR4550FE/HF	VDR4550FB/HF	45*50	8	12	60M
VDR5050F/HF	VDR5050FW/HF	VDR5050FE/HF	VDR5050FB/HF	50*50	8	12	50M
VDR5550F/HF	VDR5550FW/HF	VDR5550FE/HF	VDR5550FB/HF	55*50	8	12	48M
VDR6050F/HF	VDR6050FW/HF	VDR6050FE/HF	VDR6050FB/HF	60*50	8	12	48M
VDR7550F/HF	VDR7550FW/HF	VDR7550FE/HF	VDR7550FB/HF	75*50	8	12	40M
VDR8050F/HF	VDR8050FW/HF	VDR8050FE/HF	VDR8050FB/HF	80*50	8	12	40M
VDR10050F/HF	VDR10050FW/HF	VDR10050FE/HF	VDR10050FB/HF	100*50	8	12	26M
VDR12555F/HF	VDR12555FW/HF	VDR12555FE/HF	VDR12555FB/HF	125*55	8	12	26M
VDR2060F/HF	VDR2060FW/HF	VDR2060FE/HF	VDR2060FB/HF	20*60	8	12	100M
VDR2560F/HF	VDR2560FW/HF	VDR2560FE/HF	VDR2560FB/HF	25*60	8	12	100M
VDR3060F/HF	VDR3060FW/HF	VDR3060FE/HF	VDR3060FB/HF	30*60	8	12	80M
VDR3560F/HF	VDR3560FW/HF	VDR3560FE/HF	VDR3560FB/HF	35*60	8	12	78M
VDR4060F/HF	VDR4060FW/HF	VDR4060FE/HF	VDR4060FB/HF	40*60	8	12	60M
VDR4560F/HF	VDR4560FW/HF	VDR4560FE/HF	VDR4560FB/HF	45*60	8	12	30M
VDR5060F/HF	VDR5060FW/HF	VDR5060FE/HF	VDR5060FB/HF	50*60	8	12	60M
VDR6060F/HF	VDR6060FW/HF	VDR6060FE/HF	VDR6060FB/HF	60*60	8	12	48M
VDR8060F/HF	VDR8060FW/HF	VDR8060FE/HF	VDR8060FB/HF	80*60	8	12	36M
VDR10060F/HF	VDR10060FW/HF	VDR10060FE/HF	VDR10060FB/HF	100*60	8	12	28M
VDR11060F/HF	VDR11060FW/HF	VDR11060FE/HF	VDR11060FB/HF	110*60	8	12	48M
VDR12060F/HF	VDR12060FW/HF	VDR12060FE/HF	VDR12060FB/HF	120*60	8	12	48M
VDR15060F/HF	VDR15060FW/HF	VDR15060FE/HF	VDR15060FB/HF	150*60	8	12	16M
VDR2565F/HF	VDR2565FW/HF	VDR2565FE/HF	VDR2565FB/HF	25*65	8	12	88M
VDR3365F/HF	VDR3365FW/HF	VDR3365FE/HF	VDR3365FB/HF	33*65	8	12	80M
VDR4565F/HF	VDR4565FW/HF	VDR4565FE/HF	VDR4565FB/HF	45*65	8	12	52M
VDR6565F/HF	VDR6565FW/HF	VDR6565FE/HF	VDR6565FB/HF	65*65	8	12	44M
VDR7265F/HF	VDR7265FW/HF	VDR7265FE/HF	VDR7265FB/HF	72*65	8	12	42M
VDR2575F/HF	VDR2575FW/HF	VDR2575FE/HF	VDR2575FB/HF	25*75	8	12	/
VDR5075F/HF	VDR5075FW/HF	VDR5075FE/HF	VDR5075FB/HF	50*75	8	12	42M
VDR7575F/HF	VDR7575FW/HF	VDR7575FE/HF	VDR7575FB/HF	75*75	8	12	40M
VDR10075F/HF	VDR10075FW/HF	VDR10075FE/HF	VDR10075FB/HF	100*75	8	12	24M
VDR2580F/HF	VDR2580FW/HF	VDR2580FE/HF	VDR2580FB/HF	25*80	8	12	72M
VDR3080F/HF	VDR3080FW/HF	VDR3080FE/HF	VDR3080FB/HF	30*80	8	12	56M
VDR3580F/HF	VDR3580FW/HF	VDR3580FE/HF	VDR3580FB/HF	35*80	8	12	56M
VDR4080F/HF	VDR4080FW/HF	VDR4080FE/HF	VDR4080FB/HF	40*80	8	12	48M
VDR4580F/HF	VDR4580FW/HF	VDR4580FE/HF	VDR4580FB/HF	45*80	8	12	40M
VDR5080F/HF	VDR5080FW/HF	VDR5080FE/HF	VDR5080FB/HF	50*80	8	12	40M
VDR5580F/HF	VDR5580FW/HF	VDR5580FE/HF	VDR5580FB/HF	55*80	8	12	32M
VDR6080F/HF	VDR6080FW/HF	VDR6080FE/HF	VDR6080FB/HF	60*80	8	12	32M
VDR8080F/HF	VDR8080FW/HF	VDR8080FE/HF	VDR8080FB/HF	80*80	8	12	24M
VDR10080F/HF	VDR10080FW/HF	VDR10080FE/HF	VDR10080FB/HF	100*80	8	12	24M
VDR12080F/HF	VDR12080FW/HF	VDR12080FE/HF	VDR12080FB/HF	120*80	8	12	16M
VDR14080F/HF	VDR14080FW/HF	VDR14080FE/HF	VDR14080FB/HF	140*80	8	12	16M
VDR16080F/HF	VDR16080FW/HF	VDR16080FE/HF	VDR16080FB/HF	160*80	8	12	/
VDR25100F/HF	VDR25100FW/HF	VDR25100FE/HF	VDR25100FB/HF	25*100	8	12	60M
VDR33100F/HF	VDR33100FW/HF	VDR33100FE/HF	VDR33100FB/HF	33*100	8	12	44M
VDR40100F/HF	VDR40100FW/HF	VDR40100FE/HF	VDR40100FB/HF	40*100	8	12	40M
VDR50100F/HF	VDR50100FW/HF	VDR50100FE/HF	VDR50100FB/HF	50*100	8	12	40M
VDR60100F/HF	VDR60100FW/HF	VDR60100FE/HF	VDR60100FB/HF	60*100	8	12	32M
VDR70100F/HF	VDR70100FW/HF	VDR70100FE/HF	VDR70100FB/HF	70*100	8	12	24M
VDR75100F/HF	VDR75100FW/HF	VDR75100FE/HF	VDR75100FB/HF	75*100	8	12	24M
VDR80100F/HF	VDR80100FW/HF	VDR80100FE/HF	VDR80100FB/HF	80*100	8	12	24M
VDR100100F/HF	VDR100100FW/HF	VDR100100FE/HF	VDR100100FB/HF	100*100	8	12	24M
VDR120100F/HF	VDR120100FW/HF	VDR120100FE/HF	VDR120100FB/HF	120*100	8	12	16M
VDR150100F/HF	VDR150100FW/HF	VDR150100FE/HF	VDR150100FB/HF	150*100	8	12	16M
VDR160100F/HF	VDR160100FW/HF	VDR160100FE/HF	VDR160100FB/HF	160*100	8	12	/
VDR100130F/HF	VDR100130FW/HF	VDR100130FE/HF	VDR100130FB/HF	100*130	8	12	/
VDR200100F/HF	VDR200100FW/HF	VDR200100FE/HF	VDR200100FB/HF	200*100	8	12	16M
VDR200150F/HF	VDR200150FW/HF	VDR200150FE/HF	VDR200150FB/HF	200*150	8	12	16M
